Oil Pump Flow Control Valve Harness Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

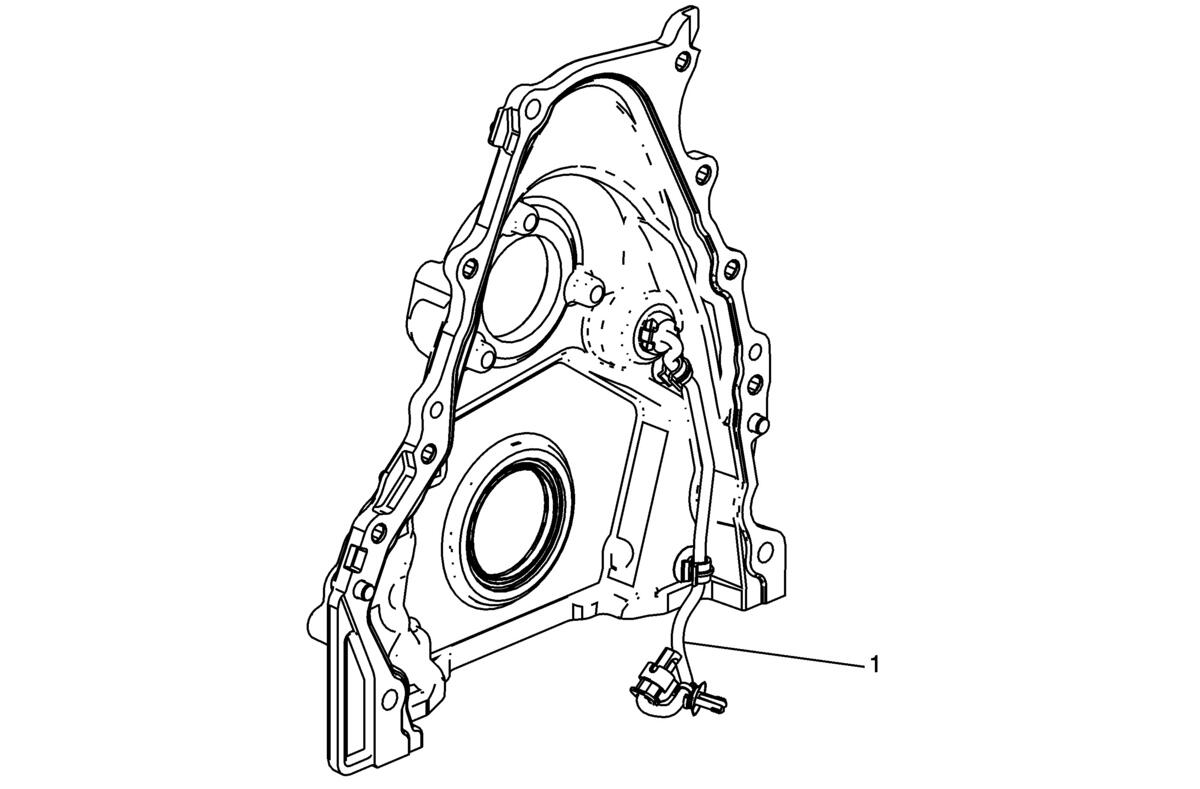

Fig 1: Oil Pump Flow Control Valve Harness
GM3273620Courtesy of GENERAL MOTORS COMPANY
Oil Pump Flow Control Valve Harness Removal

Callout Component Name
1 Oil Pump Flow Control Valve Harness

Procedure

  1. Remove the wire from the 2 retainer clips.
  2. Push the tabs in and pull the harness and connector through the front of the engine front cover
