Front Cover Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

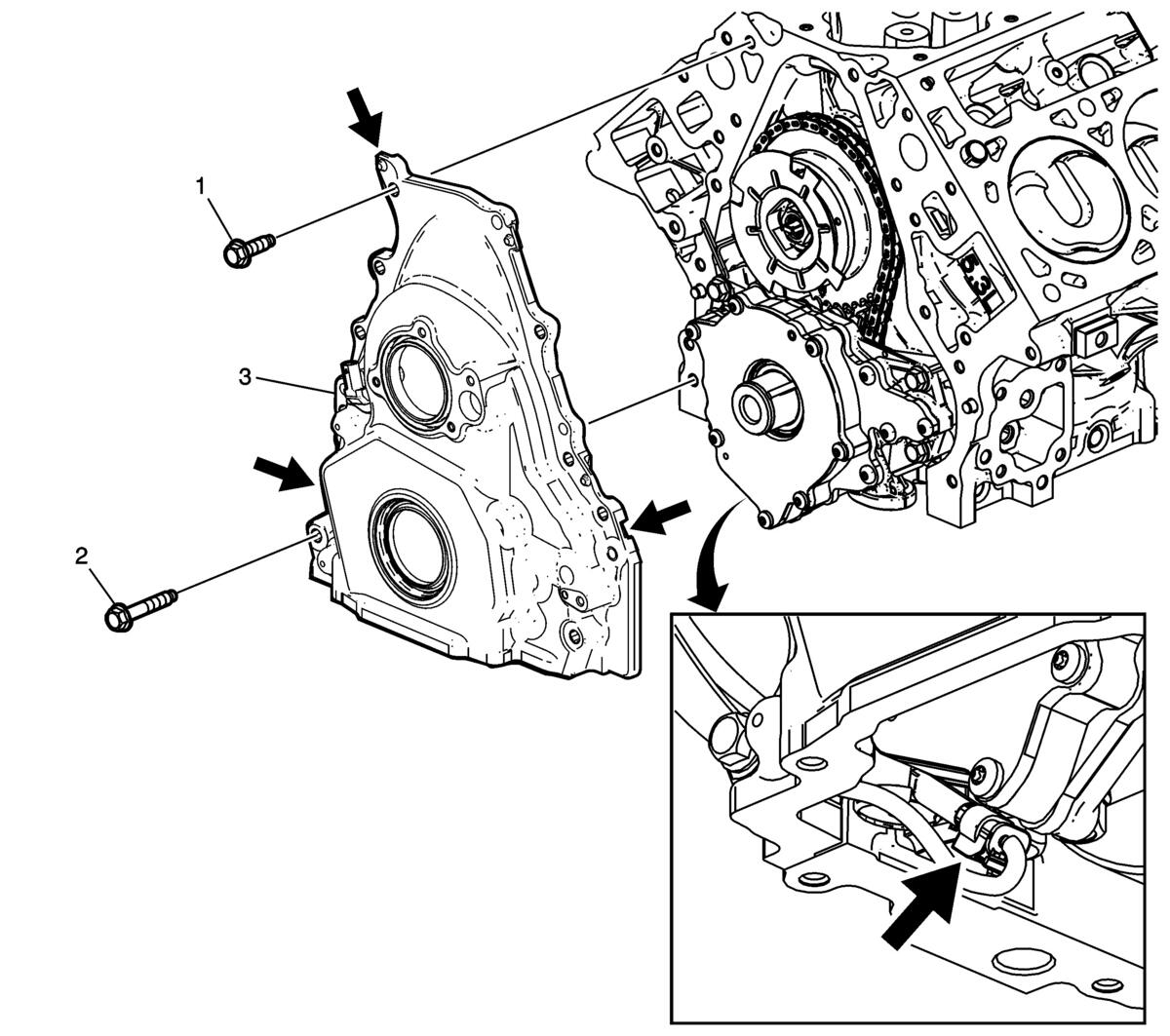

Fig 1: Front Cover
GM2874546Courtesy of GENERAL MOTORS COMPANY
Front Cover Removal

Callout Component Name
Preliminary Procedure
The oil pump flow control valve harness must be removed before the front cover can be removed.
1 Engine Front Cover Bolt
2 Engine Front Cover Bolt
3 Engine Front Cover
NOTE:

To separate the front cover from the engine, pry at the points that are shown by the arrows.
