Engine Coolant Manifold Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

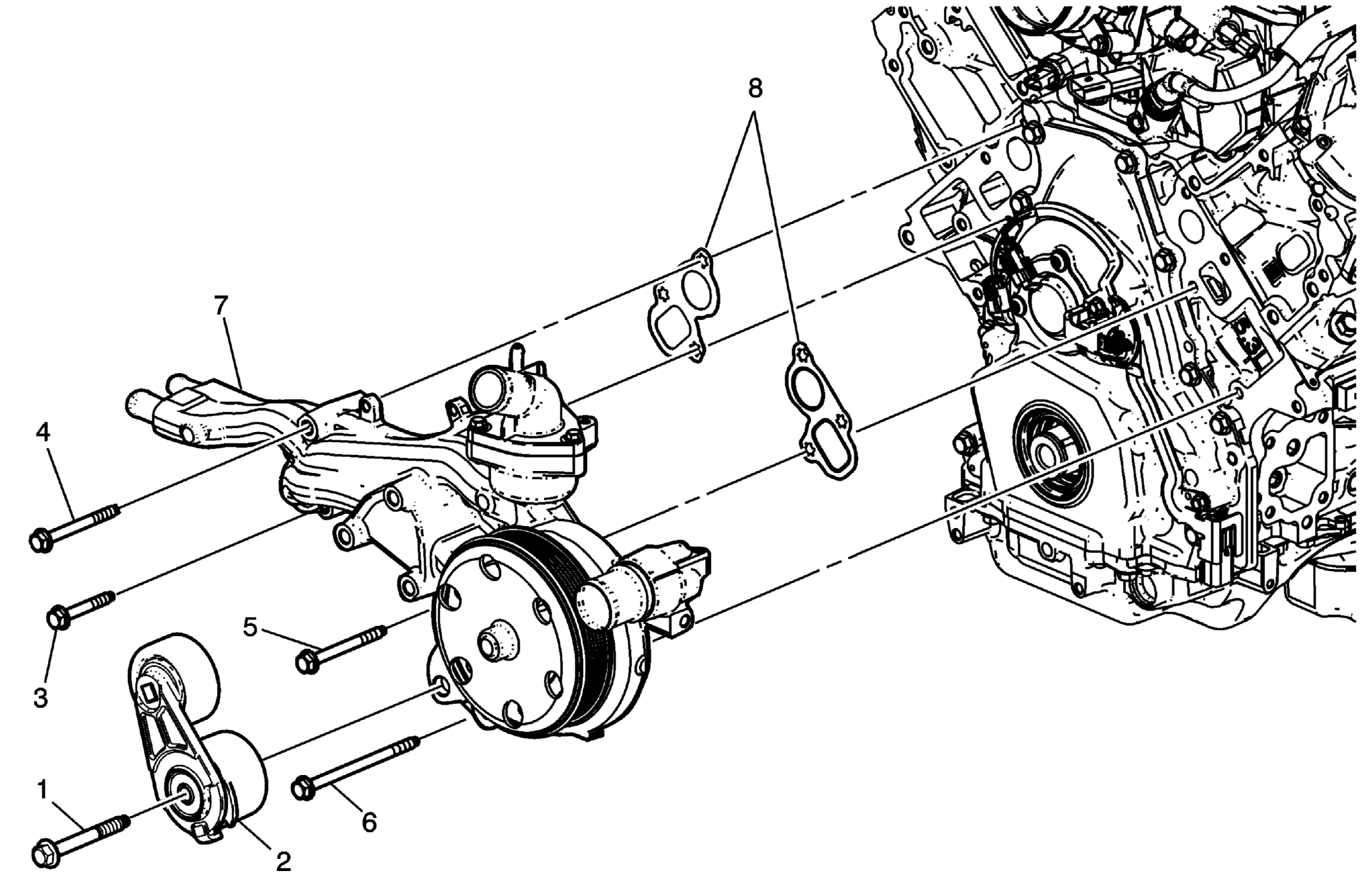

| Callout | Component Name |
|---|---|
| 1 | Drive Belt Tensioner Bolt |
| 2 | Drive Belt Tensioner |
| 3 | Engine Coolant Manifold Bolt |
| 4 | Engine Coolant Manifold Bolt |
| 5 | Engine Coolant Manifold Bolt |
| 6 | Engine Coolant Manifold Bolt |
| 7 | Engine Coolant Manifold Assembly |
| 8 | Engine Coolant Manifold Gaskets Refer to Replacing Engine Gaskets .
NOTE:
Discard gasket, it is not reusable. |
