Engine Coolant Manifold Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

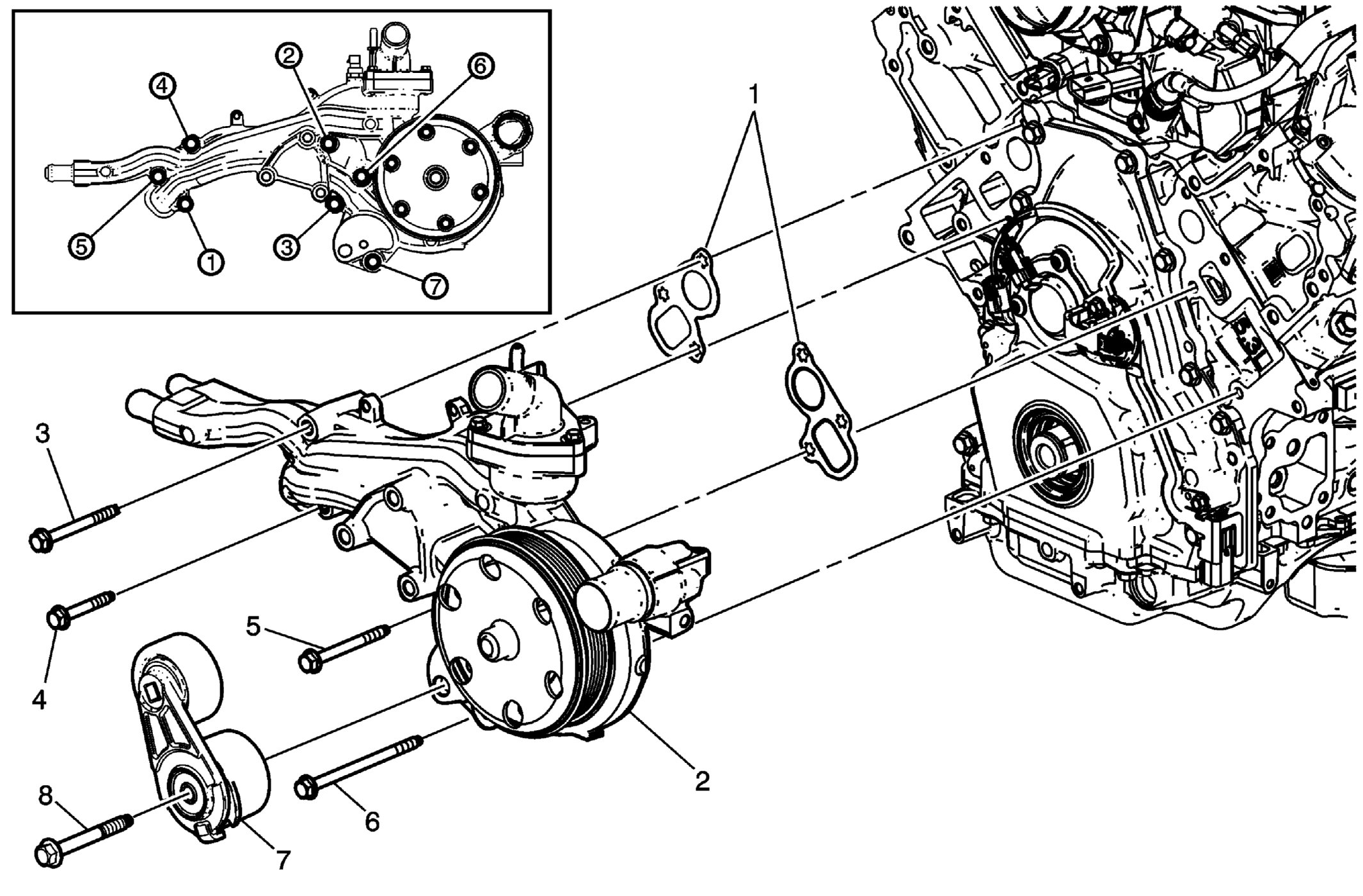

| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Manifold Gaskets
NOTE:
Must use a NEW gasket. |
| 2 | Engine Coolant Manifold Assembly |
| 3 | Engine Coolant Manifold Bolt
CAUTION:
Refer to Fastener Caution .
NOTE:
Clean the threads and apply a threadlocker. Refer to Adhesives, Fluids, Lubricants, and Sealers . Procedure Tighten the engine coolant manifold bolts in the sequence shown. Tighten 25 N.m (18 lb ft) |
| 4 | Engine Coolant Manifold Bolt
NOTE:
Clean the threads and apply a threadlocker. Refer to Adhesives, Fluids, Lubricants, and Sealers . Procedure Tighten the engine coolant manifold bolts in the sequence shown. Tighten 25 N.m (18 lb ft) |
| 5 | Engine Coolant Manifold Bolt
NOTE:
Clean the threads and apply a threadlocker. Refer to Adhesives, Fluids, Lubricants, and Sealers . Procedure Tighten the engine coolant manifold bolts in the sequence shown. Tighten 25 N.m (18 lb ft) |
| 6 | Engine Coolant Manifold Bolt
NOTE:
Clean the threads and apply a threadlocker. Refer to Adhesives, Fluids, Lubricants, and Sealers . Procedure Tighten the engine coolant manifold in the sequence shown. Tighten 25 N.m (18 lb ft) |
| 7 | Drive Belt Tensioner |
| 8 | Drive Belt Tensioner Bolt Tighten 58 N.m (43 lb ft) |
