Engine Coolant Manifold Disassemble
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

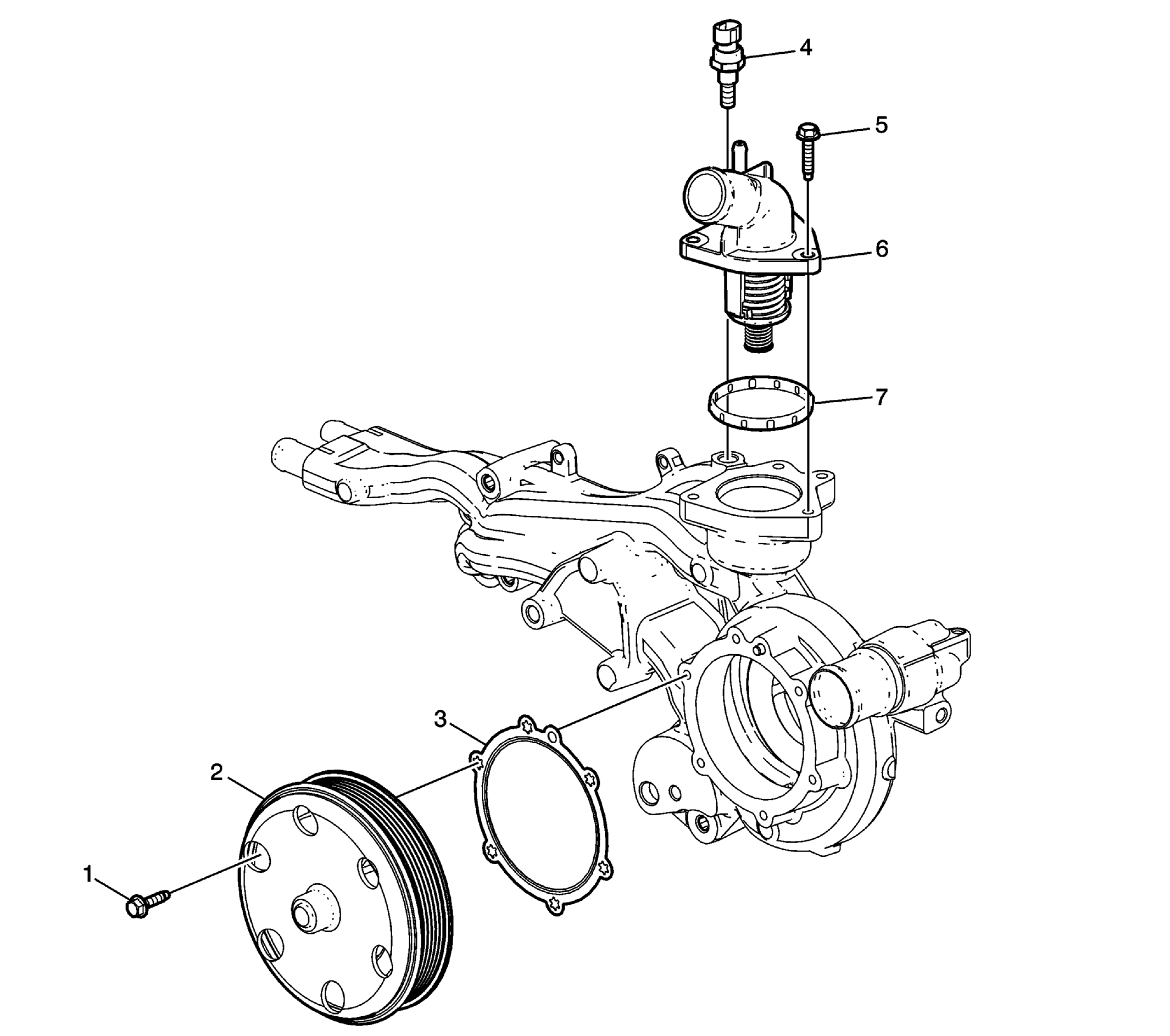

| Callout | Component Name |
|---|---|
| 1 | Water Pump Assembly Bolts |
| 2 | Water Pump Assembly |
| 3 | Water Pump Assembly Gasket
NOTE:
Discard gasket, it is not reusable. |
| 4 | Engine Coolant Temperature Sensor |
| 5 | Water Pump Outlet Bolts |
| 6 | Water Pump Outlet Assembly (with Thermostat) |
| 7 | Water Pump Outlet Gasket
NOTE:
Discard gasket, it is not reusable. |
