Engine Coolant Manifold Cleaning And Inspection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all excess dirt and debris from the engine coolant manifold housing.

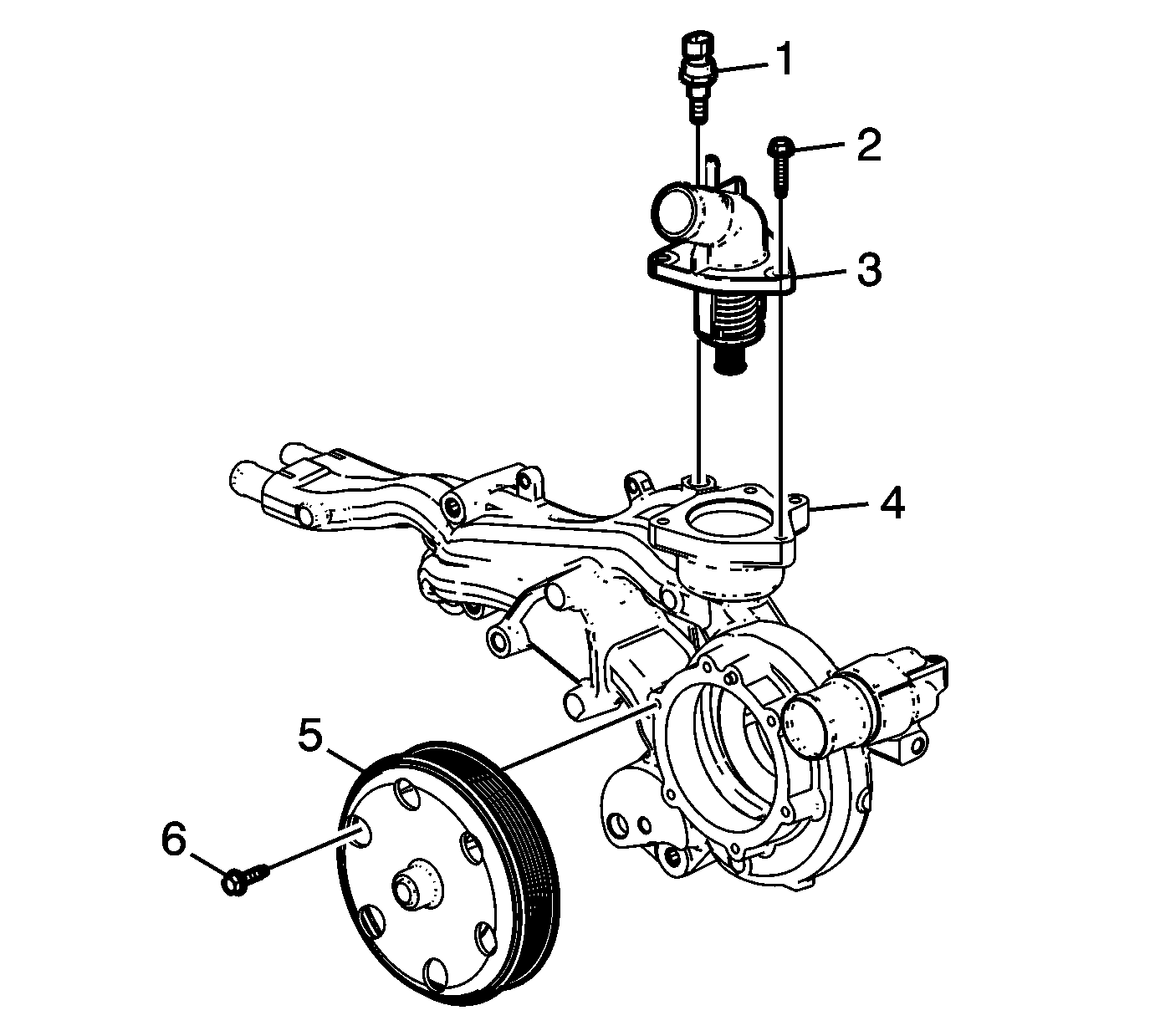

- Inspect for leakage between the water output flange (4) and the thermostat housing (3).
- Inspect the engine coolant manifold for the following conditions:
- Gasket and hose sealing surfaces for excessive scratches or gouging
- Restrictions within the internal coolant passages
- Excessive side-to-side play in the pulley shaft
- Leakage at the water inlet housing or rear cover
- Leakage at the water outlet housing or water pump outlet assembly
- Leakage at the water pump vent hole
A stain around the vent hole is acceptable. If leakage, dripping, occurs with the engine running and the cooling system pressurized, replace the water pump.
- Wear or damage in the belt tracking area of the pulley
