Engine Coolant Manifold Assemble

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

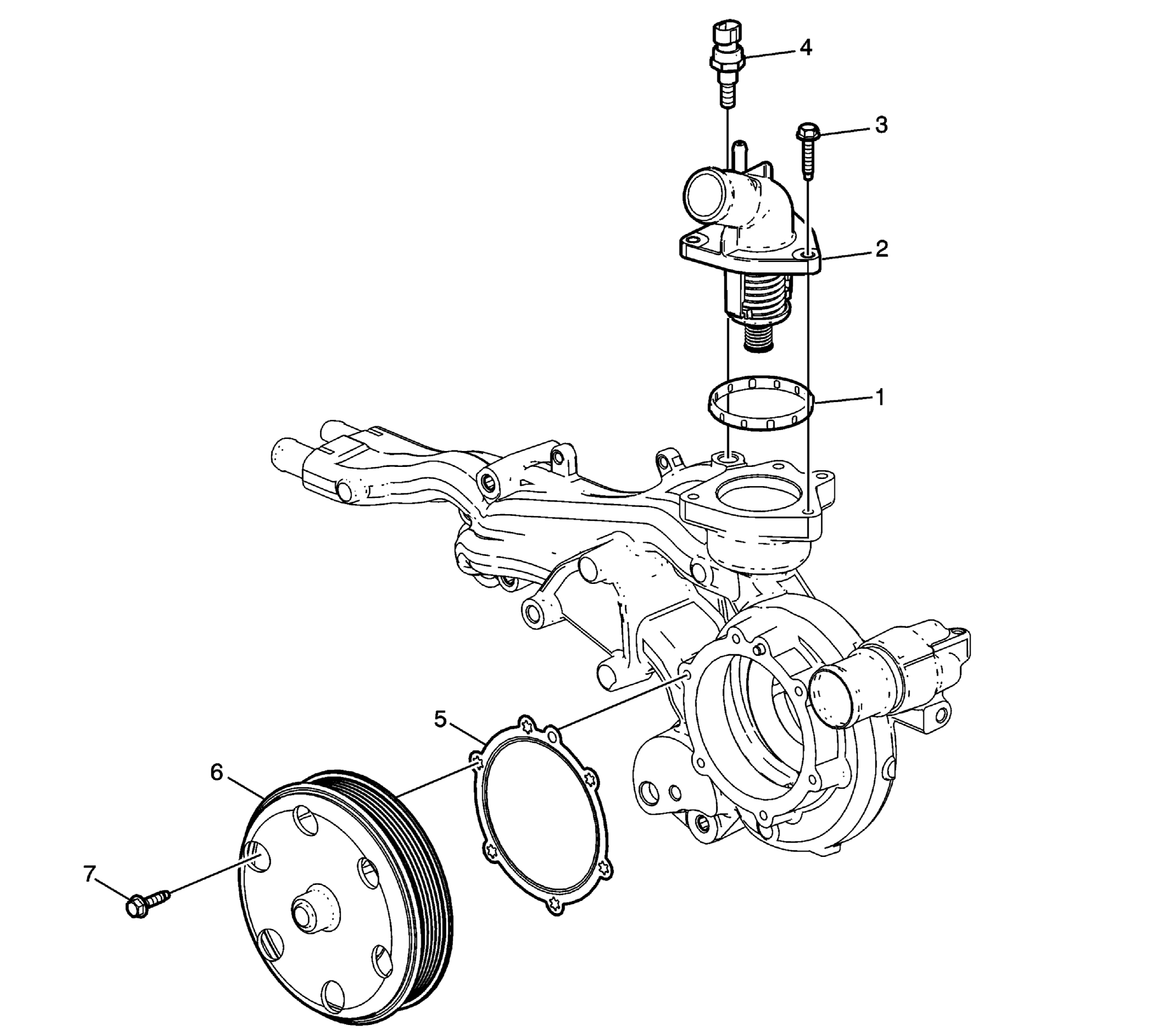

Fig 1: Engine Coolant Manifold
GM3213022Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Water Pump Outlet Gasket
NOTE:

Install a NEW Gasket.
2 Water Pump Outlet Assembly (with Thermostat)
3 Water Pump Outlet Bolts
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Install and hand tighten all three bolts.
  2. Tighten bolts to final torque.

Tighten
10 N.m (88 lb in)
4 Engine Coolant Temperature Sensor
Tighten
20 N.m (15 lb ft)
5 Water Pump Assembly Gasket
NOTE:

Install a NEW Gasket.
6 Water Pump Assembly
7 Water Pump Assembly Bolts
Tighten
10 N.m (88 lb in)
