Plug Removal - Right Side

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

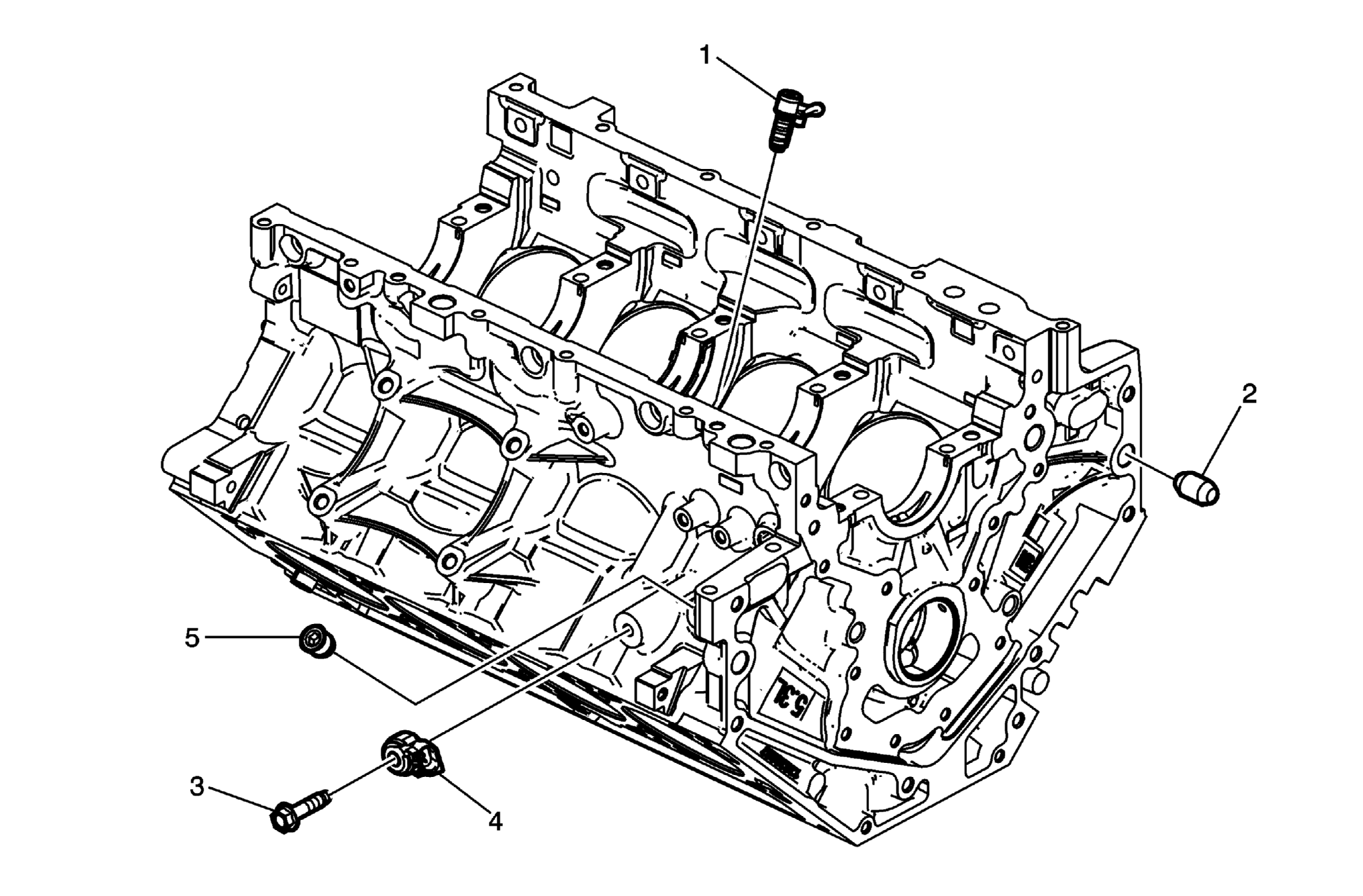

Fig 1: Plug -- Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Piston Oil Nozzle Assembly
2	Transmission Locating Pin
3	Knock Sensor Bolt
4	Knock Sensor Assembly
5	Engine Block Plug
