Crankshaft Rear Oil Seal Housing Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

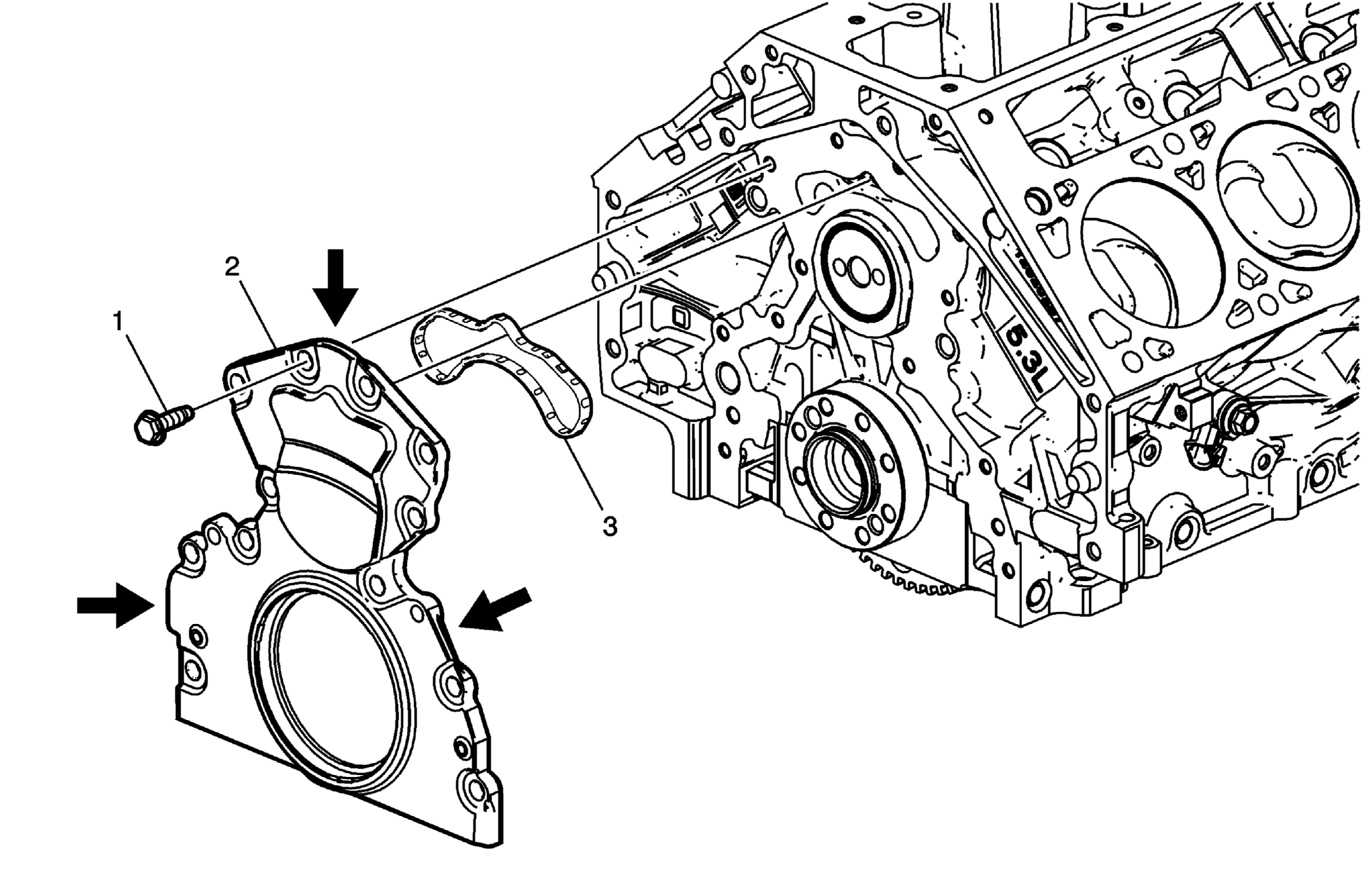

| Callout | Component Name |
|---|---|
| 1 | Crankshaft Rear Oil Seal Housing Bolt |
| 2 | Crankshaft Rear Oil Seal Housing
NOTE:
To separate the rear housing from the engine, pry at the points that are shown by the arrows. |
| 3 | Crankshaft Rear Oil Seal Housing Gasket Refer to Replacing Engine Gaskets . |
