Crankshaft Balancer Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

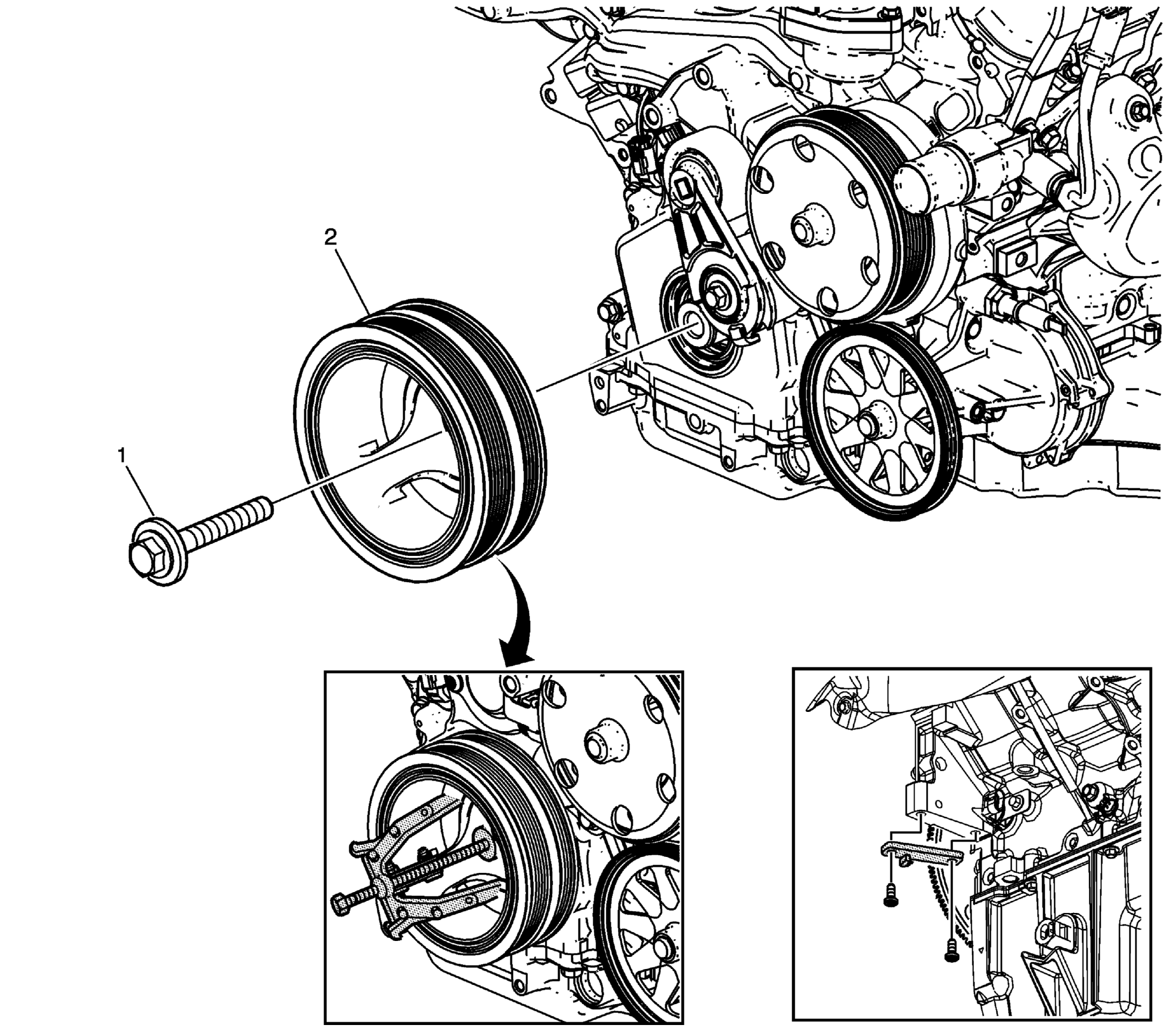

Fig 1: Crankshaft Balancer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Crankshaft Balancer Bolt NOTE: Do not discard balancer bolt, it will be used later for installation. Procedure Install the J-42386-A flywheel holding tool. Use 1 M10 - 1.5 x 120 mm and 1 M10 - 1.5 x 45 mm bolt for proper tool operation and tighten bolts to 50 N.m (37 lb ft). Special Tools J-42386-A Flywheel Holding Tool For equivalent regional tools, refer to Special Tools .
2	Crankshaft Balancer Assembly Procedure Install the EN-41816-2 crankshaft end protector, Install the EN-41816 crankshaft balancer remover. Using both tools remove the crankshaft balancer. Special Tools EN-41816 Crankshaft Balancer Remover EN-41816-2 Crankshaft End Protector For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Crankshaft Balancer Bolt

NOTE:

Do not discard balancer bolt, it will be used later for installation.

Procedure

Install the J-42386-A flywheel holding tool. Use 1 M10 - 1.5 x 120 mm and 1 M10 - 1.5 x 45 mm bolt for proper tool operation and tighten bolts to 50 N.m (37 lb ft).

Special Tools
J-42386-A Flywheel Holding Tool
For equivalent regional tools, refer to Special Tools .

Crankshaft Balancer Assembly
Procedure

Install the EN-41816-2 crankshaft end protector,
Install the EN-41816 crankshaft balancer remover.
Using both tools remove the crankshaft balancer.

Special Tools

EN-41816 Crankshaft Balancer Remover
EN-41816-2 Crankshaft End Protector

For equivalent regional tools, refer to Special Tools .
