Automatic Transmission Flex Plate Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools .

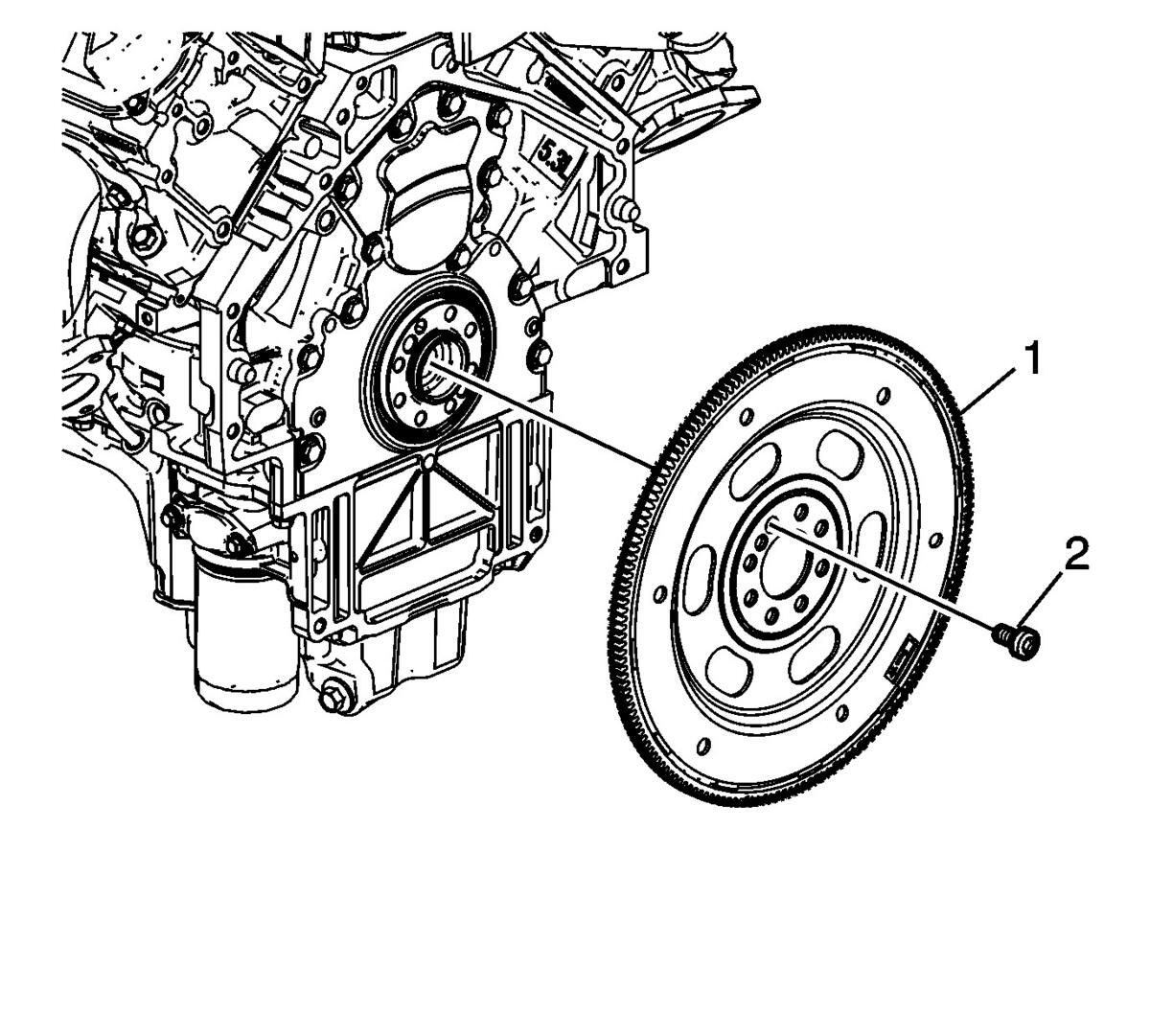

- Install the flex plate (1) to the crankshaft.
- Install the NEW engine flex plate bolts (2).
- Tighten the engine flex plate bolts (1 - 8) a first pass in sequence to 15 N.m (11 lb ft).
- Tighten the engine flex plate bolts (1 - 8) a second pass in sequence to 30 N.m (22 lb ft).
- Tighten the engine flex plate bolts (1 - 8) a final pass in sequence an additional 45 degrees using EN-45059 angle meter.
NOTE:
The flex plate does not use a locating pin for alignment and will not initially seat against the crankshaft flange, but will be pulled onto the crankshaft by the engine flex plate bolts. This procedure requires a 3 stage tightening process.
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
CAUTION:
Refer to Fastener Caution .
NOTE:
Must use NEW bolts.
