2-3-4-5-7-9-10 Clutch Plates Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

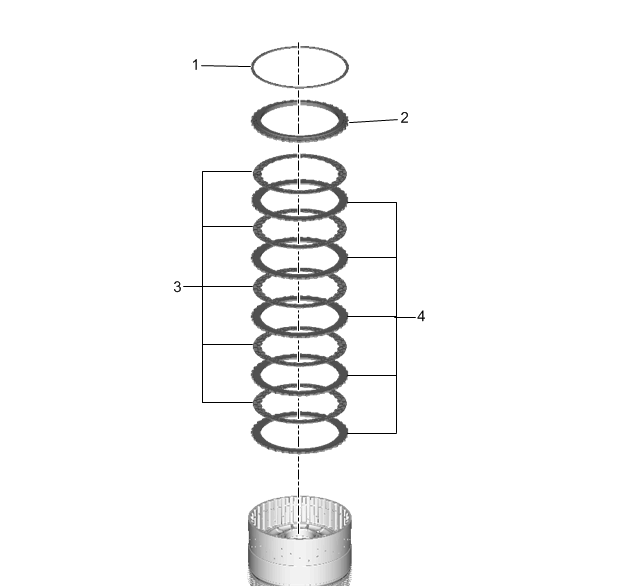

Fig 1: 2-3-4-5-7-9-10 Clutch Plates

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	2-3-4-5-7-9-10 Clutch Backing Plate Retaining Ring-Selective
2	2-3-4-5-7-9-10 Clutch Backing Plate
3	2-3-4-5-7-9-10 Fiber Clutch Plate
4	2-3-4-5-7-9-10 Steel Clutch Plate
