1-2-3-4-6-7-8-10-Reverse Clutch Plates Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

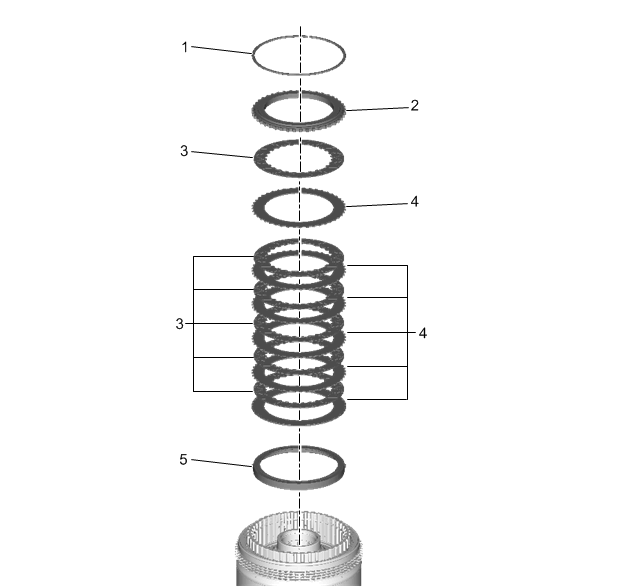

Fig 1: 1-2-3-4-6-7-8-10-Reverse Clutch Plates

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring-Selective
2	1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate
3	1-2-3-4-6-7-8-10-Reverse Fiber Clutch Plate
4	1-2-3-4-6-7-8-10-Reverse Steel Clutch Plate
5	1-2-3-4-6-7-8-10-Reverse Clutch Apply Ring
