4-5-6-7-8-9-10-Reverse Clutch Plates Installation

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

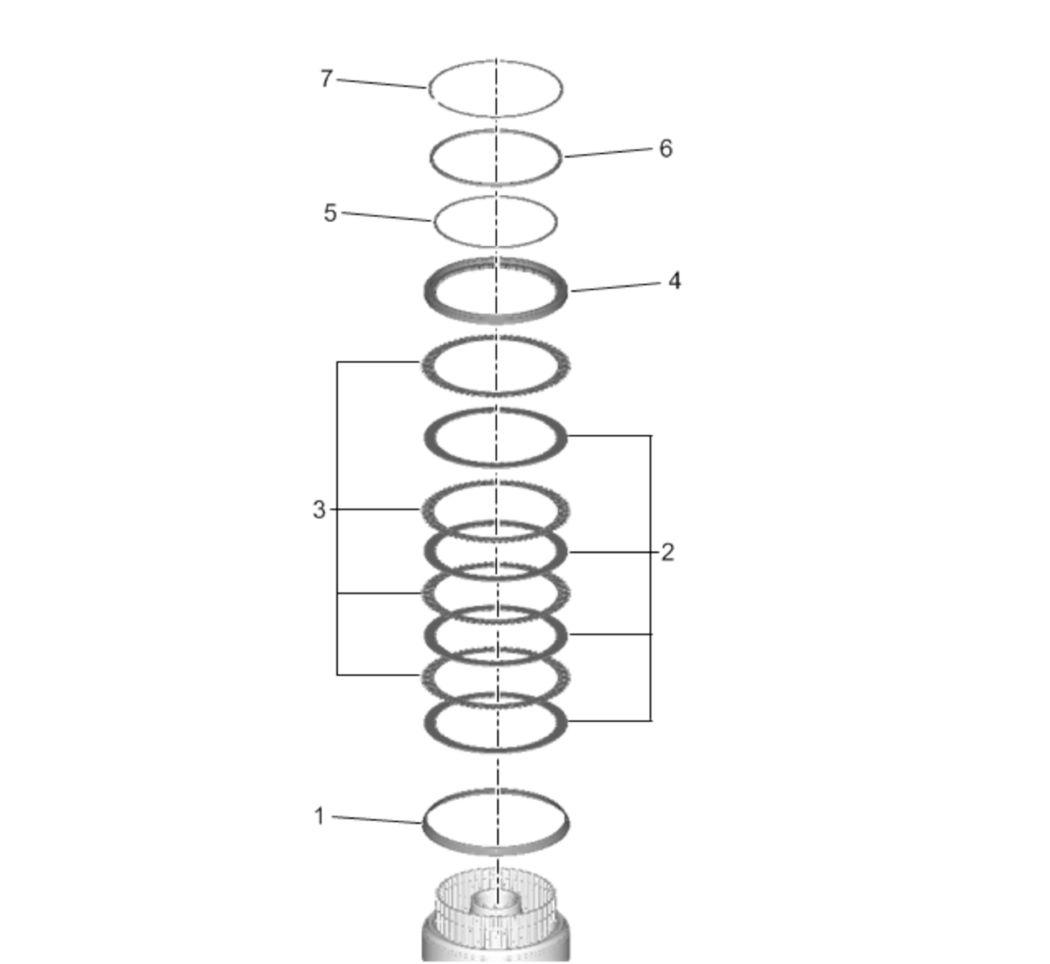

Fig 1: 4-5-6-7-8-9-10-Reverse Clutch Plates

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	4-5-6-7-8-9-10-Reverse Clutch Apply Ring
2	4-5-6-7-8-9-10-Reverse Steel Clutch Plate
3	4-5-6-7-8-9-10-Reverse Fiber Clutch Plate
4	4-5-6-7-8-9-10-Reverse Clutch Backing Plate
5	4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring-Selective NOTE: Smallest diameter ring.
6	4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring- Middle NOTE: MIddle diameter ring.
7	4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring- Outer NOTE: Largest diameer ring.
