Turbine Shaft, 1-3-5-6-7-8-9 Clutch Assembly, and Thrust Bearing Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

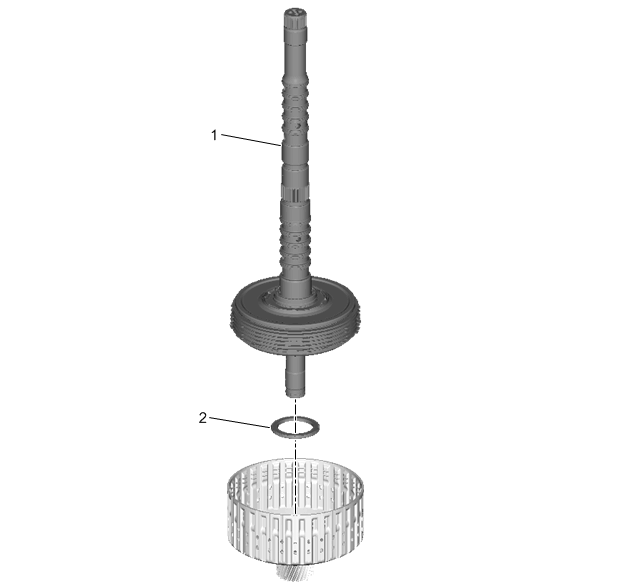

Fig 1: Turbine Shaft, 1-3-5-6-7-8-9 Clutch Assembly, and Thrust Bearing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbine Shaft & 1-3-5-6-7-8-9 Clutch Assembly
2	Output Sun Gear Thrust Bearing
