Turbine Shaft Retaining Ring and Turbine Shaft Installation

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

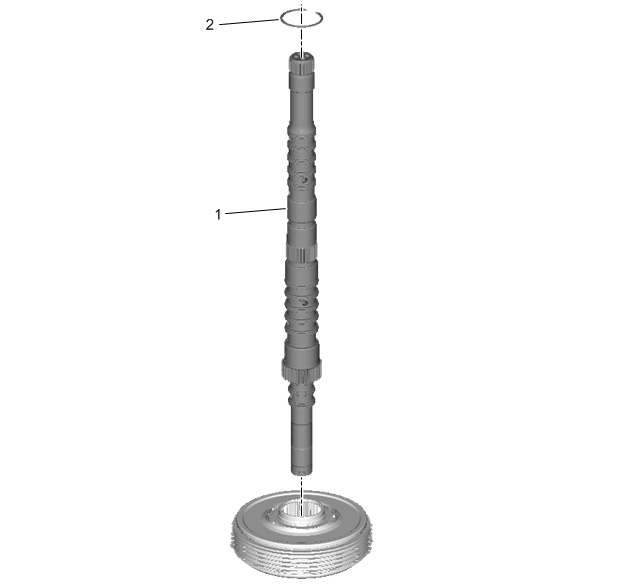

Fig 1: Turbine Shaft Retaining Ring and Turbine Shaft
GM4521301Courtesy of GENERAL MOTORS COMPANY
Turbine Shaft Retaining Ring and Turbine Shaft Installation

Callout Component Name
1 Turbine Shaft
2 Turbine Shaft Retaining Ring
