Direct Overdrive Internal Gear Retaining Ring, Internal Gear, and 1-3-5-6-7-8-9 Clutch Hub Installation
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
Direct Overdrive Internal Gear Retaining Ring, Internal Gear, and 1-3-5-6-7-8-9 Clutch Hub Installation

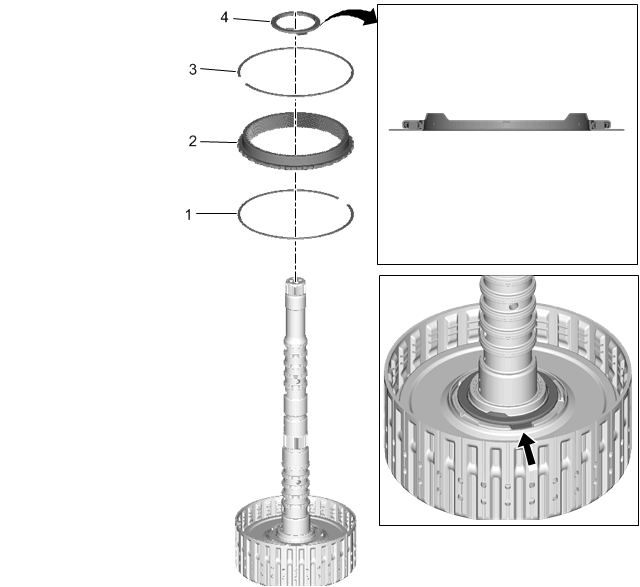

| Callout | Component Name |
|---|---|
| 1 | Direct Overdrive Internal Gear Retaining Ring |
| 2 | Direct Overdrive Internal Gear |
| 3 | Direct Overdrive Internal Gear Retaining Ring |
| 4 | Direct Overdrive Sun Gear Thrust Bearing Procedure Ensure proper orientation of bearing. |
