Control Valve Solenoid Body Assemble

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

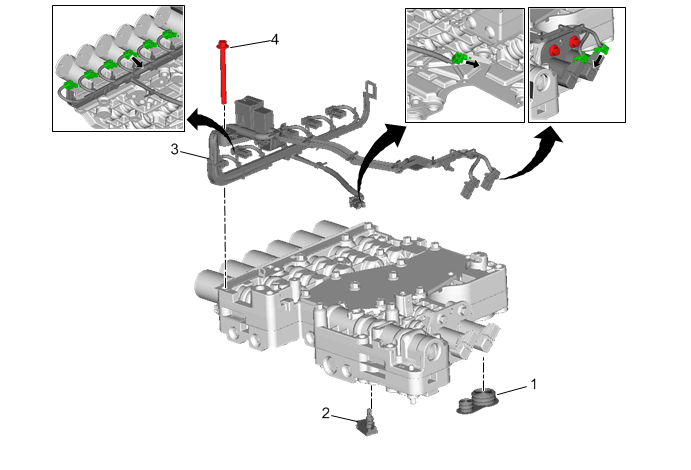

Fig 1: Identifying Control Valve Assembly
GM4522508Courtesy of GENERAL MOTORS COMPANY
Control Valve Solenoid Body Assemble

Callout Component Name
1 Automatic Transmission Fluid Pump Seal
Procedure
Install a NEW seal.
2 Automatic Transmission Fluid Temperature Sensor
Procedure
Push sensor in and turn counterclockwise.
3 Automatic Transmission Wiring Harness
4 Valve Body Bolt
Tighten
10.5 N.m (93 lb in)
