Control Valve Body Assembly Bolt Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

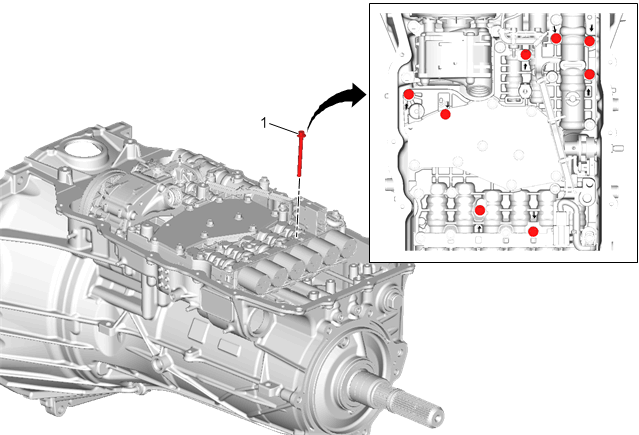

Fig 1: Control Valve Body Assembly Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Park Interlock Solenoid Bolt [8x] Procedure The bolts are marked by arrows in the valve body casting. Remove and DISCARD the bolts, they are not reusable.
