Control Valve Body Assembly Bolt Installation

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

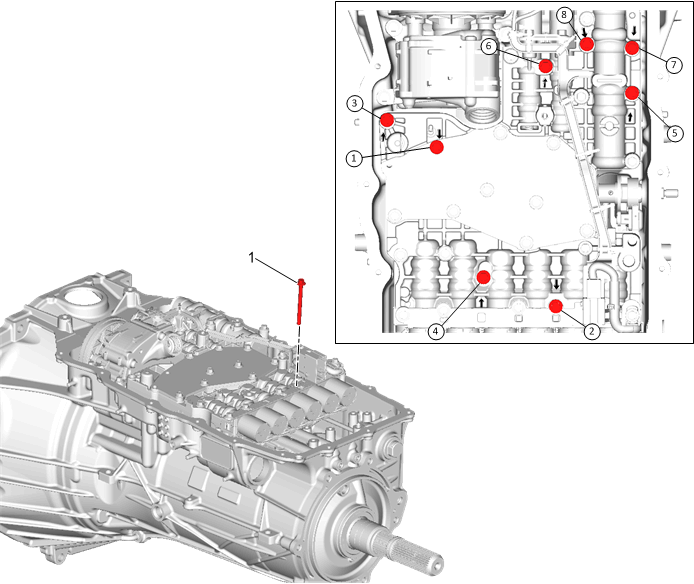

Fig 1: Control Valve Body Assembly Bolt
GM4484912Courtesy of GENERAL MOTORS COMPANY
Control Valve Body Assembly Bolt Installation

Callout Component Name
1 Automatic Transmission Park Interlock Solenoid Bolt [8x]

Procedure

  1. Use NEW bolts.
  2. Clean the bolt holes and ensure they are free from any old sealant. Allow to dry before installing NEW bolts.
NOTE:

The bolts are marked by arrows in the valve body casting.


Tighten
10.5 N.m (93 lb in)
