Case Extension Assembly Removal (2WD)
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

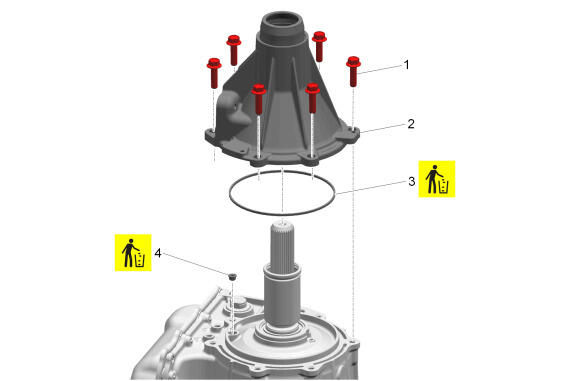

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Case Extension Bolt [6x] |
| 2 | Automatic Transmission Case Extension
CAUTION:
Before removing the automatic transmission case extension, place the transmission in a vertical position with the case extension facing up. Failure to do so may result in damage to the transmission output shaft bearing and/or sleeve. Procedure Allow any remaining transmission fluid to drain from the case extension. |
| 3 | Automatic Transmission Case Extension Seal Procedure DISCARD the seal. |
| 4 | Automatic Transmission Case Extension Seal - Lube Oil Procedure DISCARD the seal. |
