Automatic Transmission Case Plug Installation
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

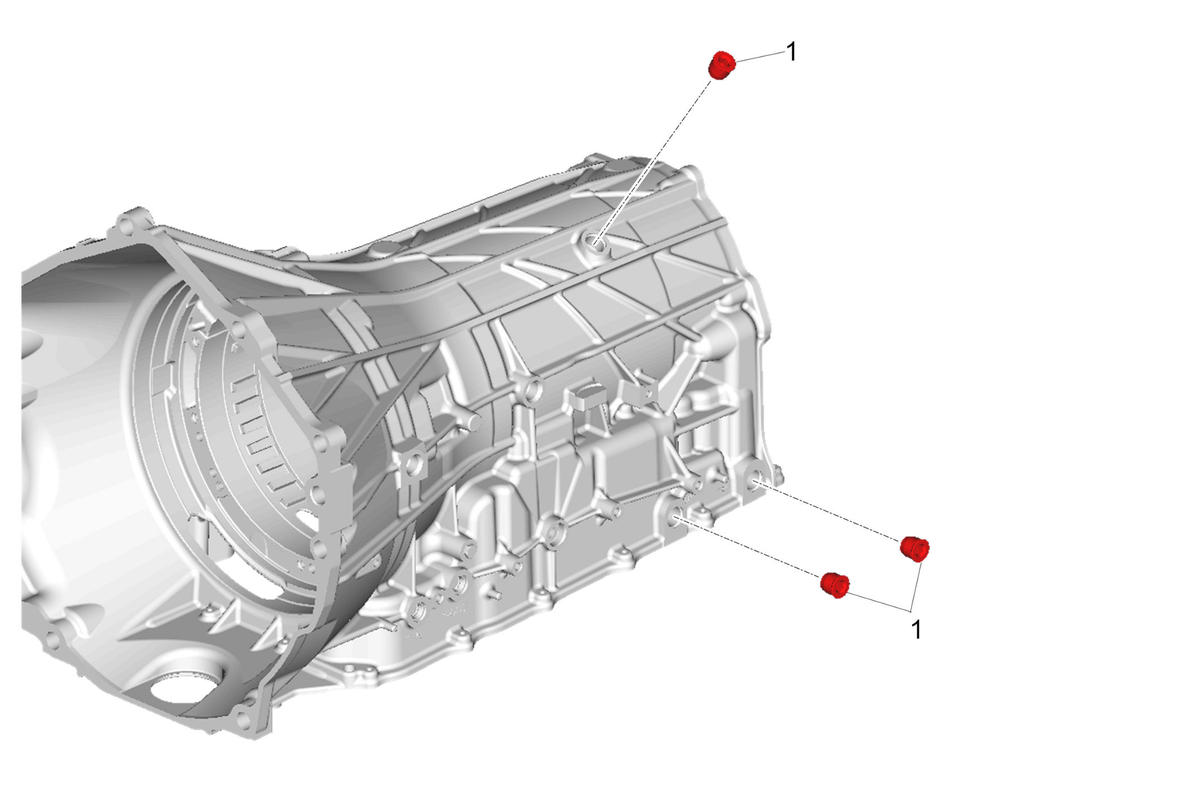

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Case Plug
CAUTION:
Refer to Fastener Caution . Procedure Apply sealant to the top outer 3 to 4 threads of the case plug near the plug head. Adhesives, Fluids, Lubricants, and Sealers Tighten 22 N.m (16 lb ft) 22 N.m (16 lb ft) |
| 2 | Automatic Transmission Case Plug Procedure Apply sealant to the top outer 3 to 4 threads of the case plug near the plug head. Adhesives, Fluids, Lubricants, and Sealers Tighten 22 N.m (16 lb ft) 22 N.m (16 lb ft) |
| 3 | Automatic Transmission Case Plug Procedure Apply sealant to the top outer 3 to 4 threads of the case plug near the plug head. Adhesives, Fluids, Lubricants, and Sealers Tighten 22 N.m (16 lb ft)22 N.m (16 lb ft) |
