Control Valve and Body Solenoid Kit
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

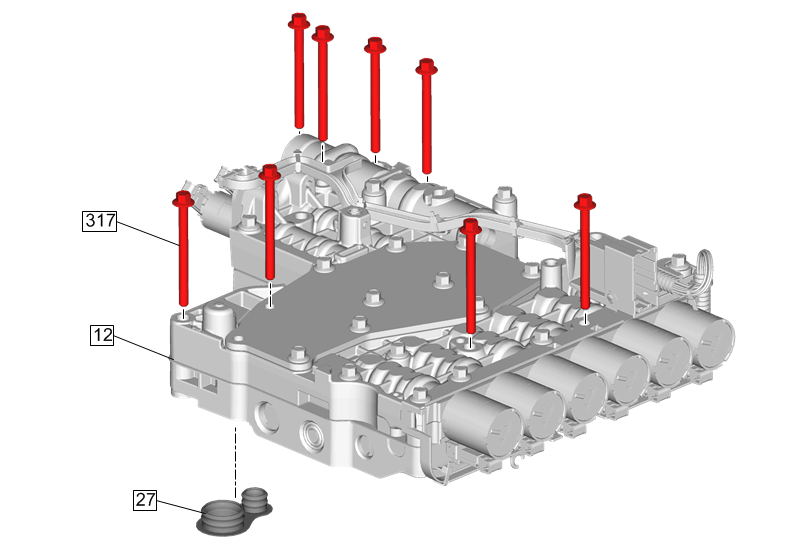

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Control Valve and Body Solenoid Kit
| Callout | Quantity | Component Name |
|---|---|---|
| 12 | 1 | Automatic Transmission Park Interlock Solenoid Bolt |
| 27 | 1 | Automatic Transmission Fluid Pump Seal |
| 317 | 8 | Control Valve Assembly - Model Dependent |
