Clutch Plate Package
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

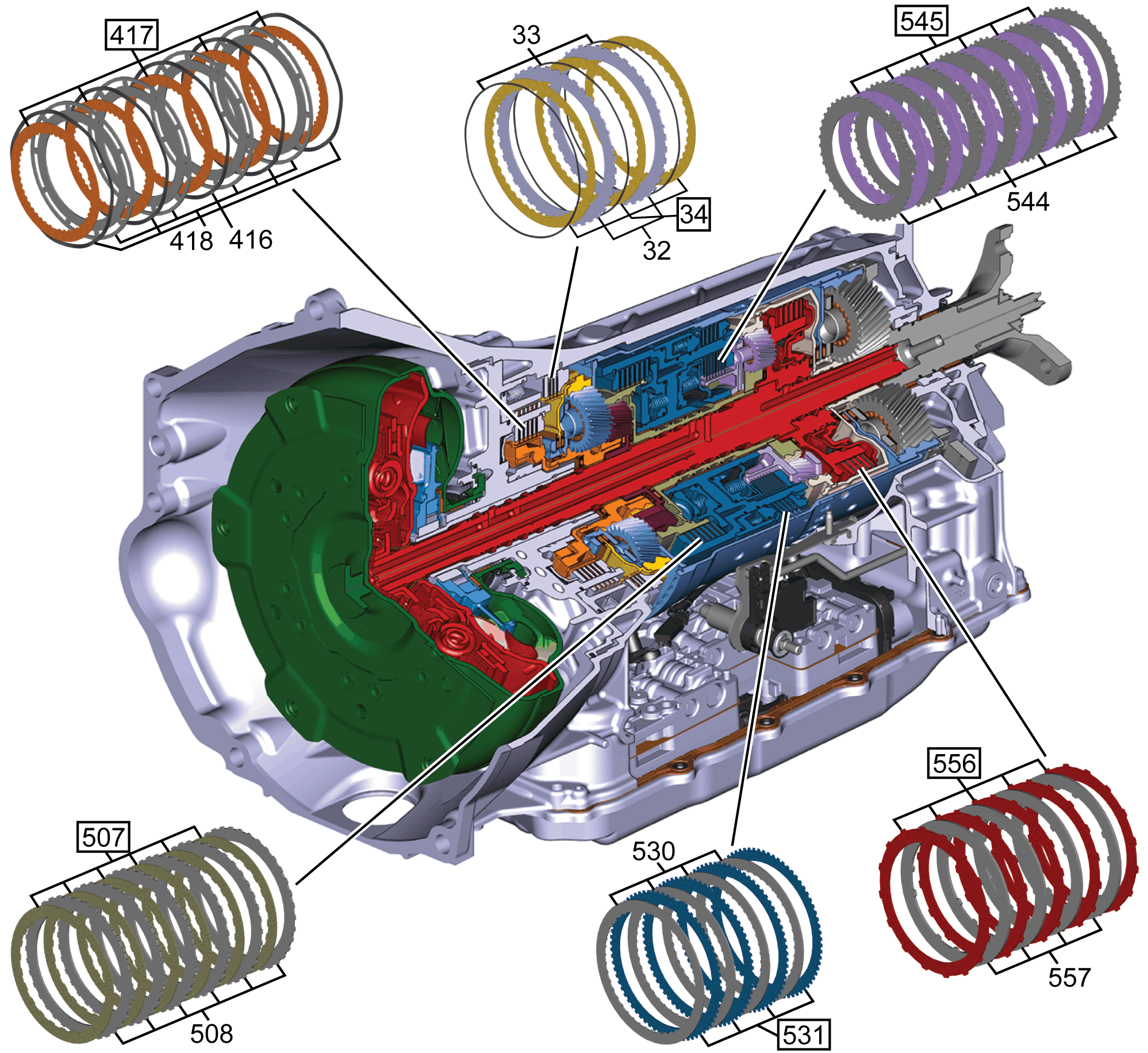

Clutch Plate Package
| Callout | Quantity | Component Name |
|---|---|---|
| 34 | 3 | 1-2-3-4-5-6-Reverse Clutch Friction Plate |
| 417 | 5 | 1-2-8-9-10-Reverse Clutch Plate |
| 507 | QTY | 1-2-8-9-10-Reverse Clutch Plate - Model Dependent |
| 531 | 4 | 4-5-6-7-8-9-10-Reverse Fiber Clutch Plate |
| 545 | QTY | 1-2-3-4-6-7-8-10-Reverse Fiber Clutch Plate - Model Dependent |
| 556 | QTY | 1-3-5-6-7-8-9 Fiber Clutch Plate - Model Dependent |
