Automatic Transmission Retaining Ring Package
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

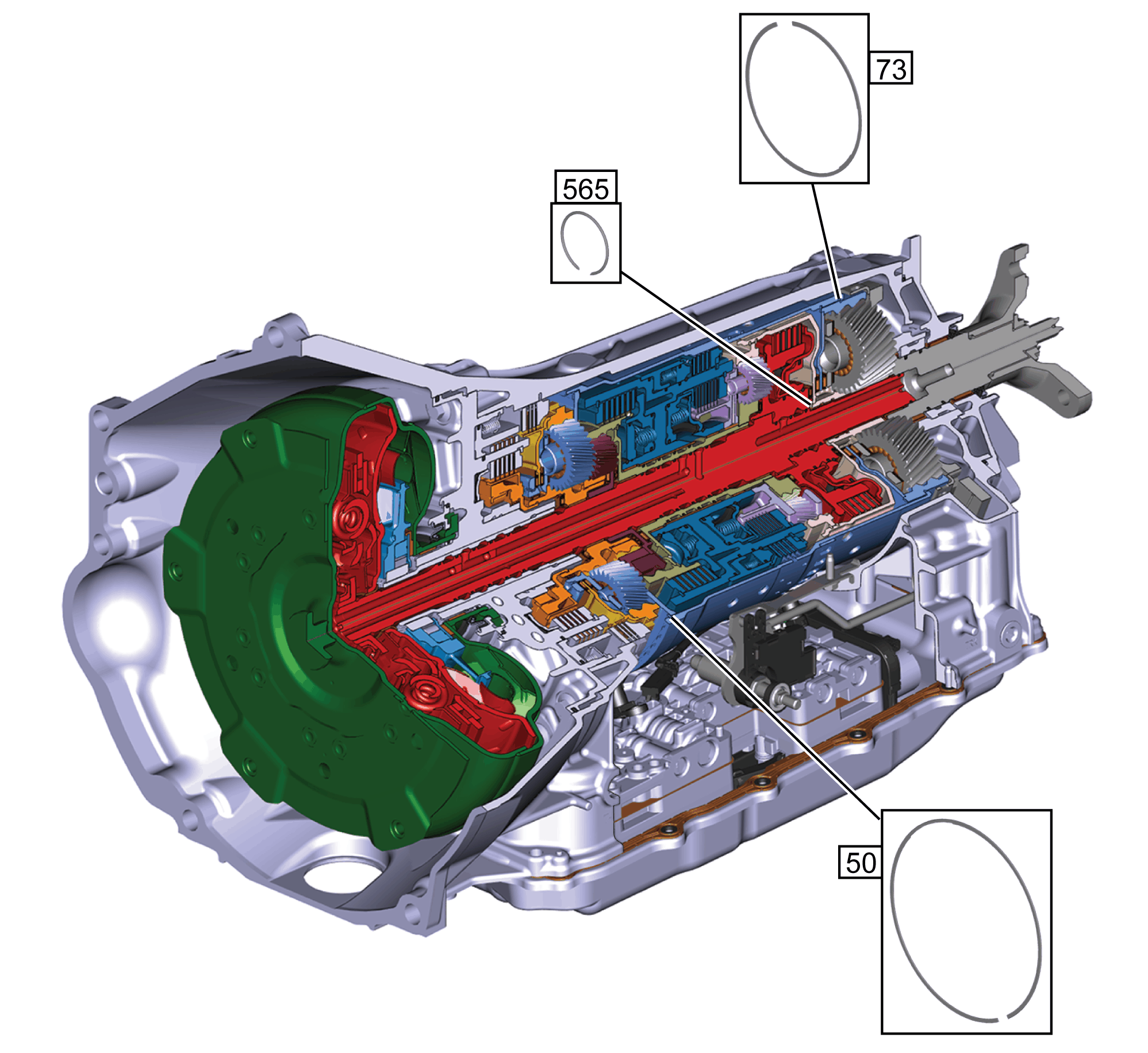

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Automatic Transmission Retaining Ring Package
| Callout | Quantity | Component Name |
|---|---|---|
| 50 | 1 | Reaction Internal Gear Spacer Retainer |
| 73 | 1 | Output Carrier Internal Gear Retaining Ring |
| 565 | 1 | 1-3-5-6-7-8-9 Clutch Piston Dam Retaining Ring |
