Automatic Transmission Cover Assembly
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

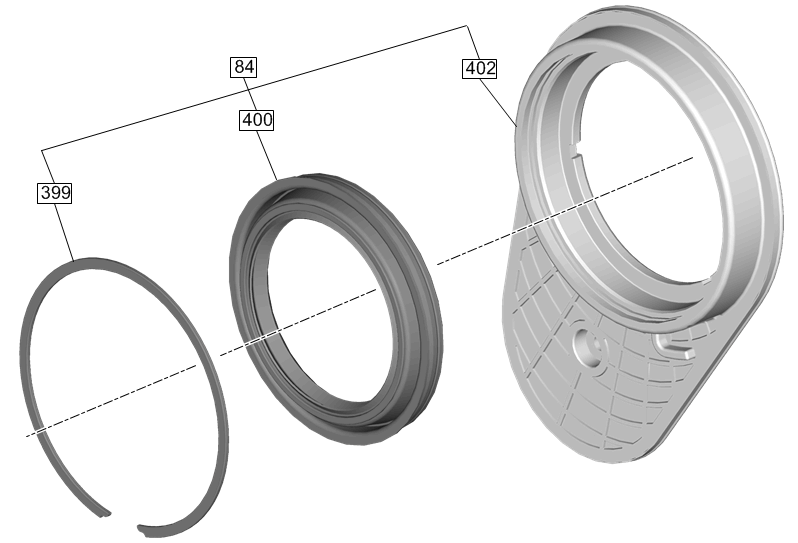

Automatic Transmission Cover Assembly
| Callout | Quantity | Component Name |
|---|---|---|
| 84 | 1 | Automatic Transmission Case Front Cover |
| 399 | 1 | Torque Converter Fluid Seal Retaining Ring |
| 400 | 1 | Torque Converter Fluid Seal |
| 402 | 1 | Automatic Transmission Case Front Cover |
