Neutral - Engine Running - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

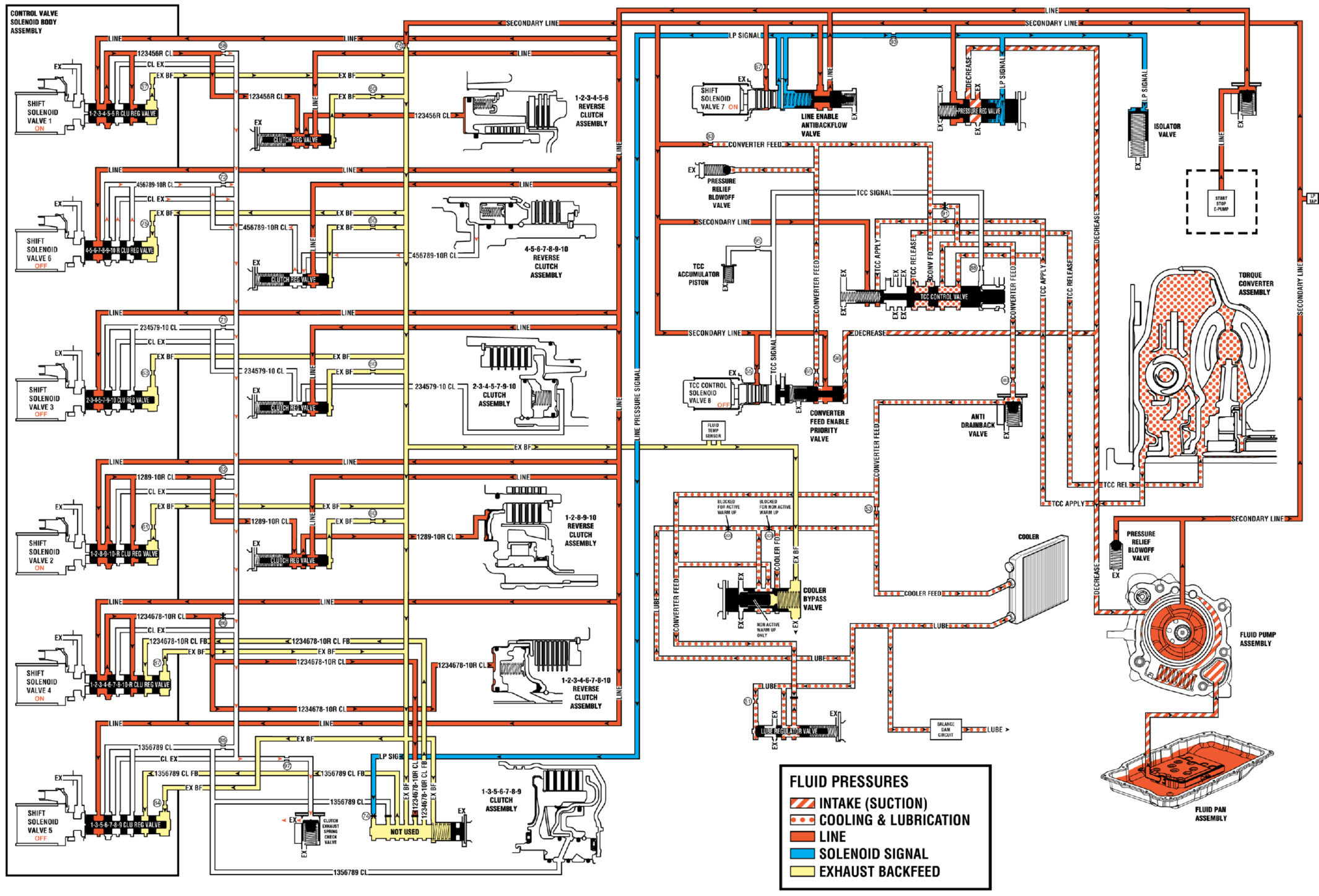

Fig 1: Neutral - Engine Running Hydraulic Diagram
GM4921111Courtesy of GENERAL MOTORS COMPANY
