Fluid Pump Assembly - Control Valve Upper Body Assembly Side

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

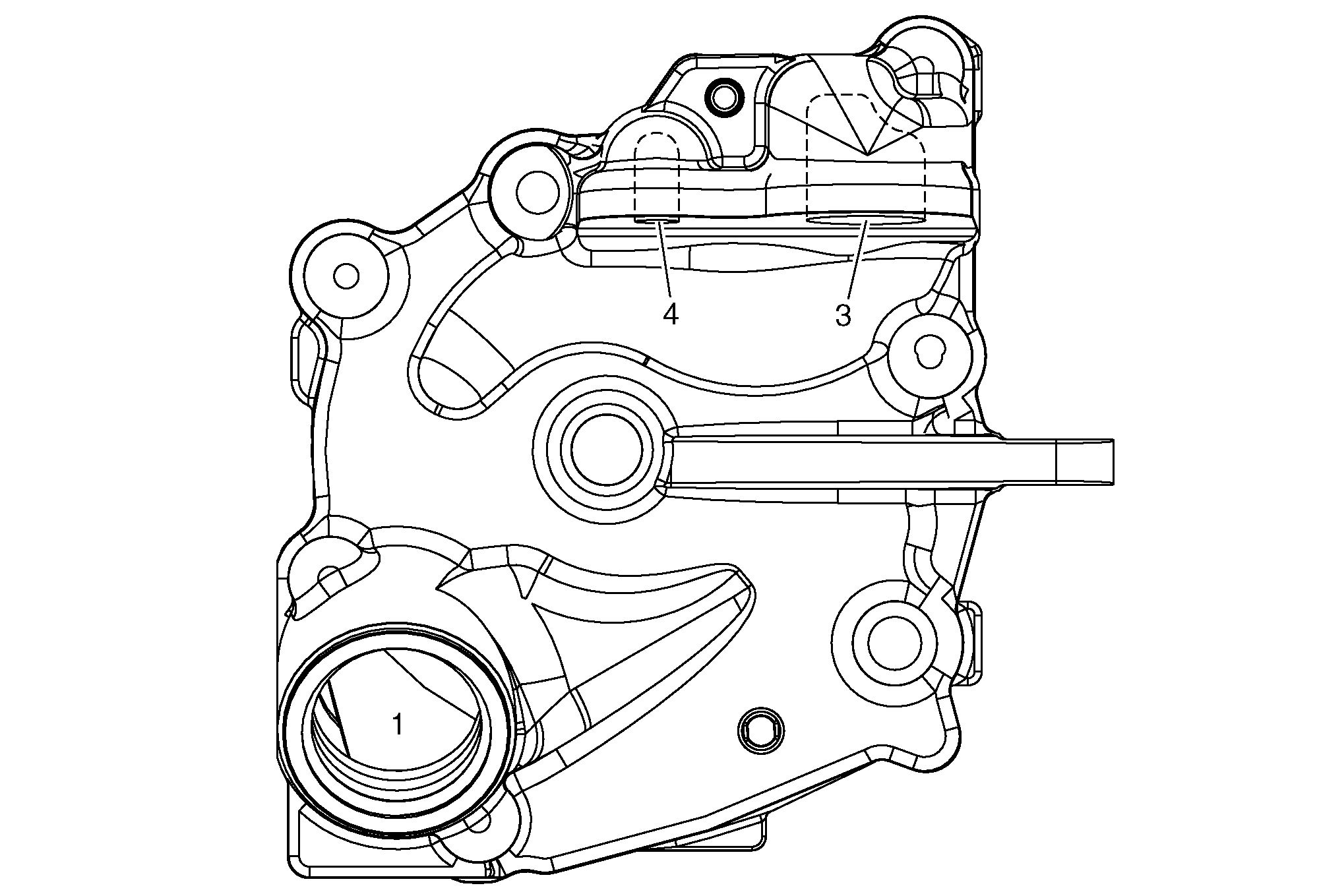

Fig 1: Fluid Pump Assembly - Control Valve Upper Body Assembly Side
GM4486438Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Suction
3 Secondary Line
4 Decrease
