Control Valve Solenoid Body Assembly - Fluid Pan Side

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

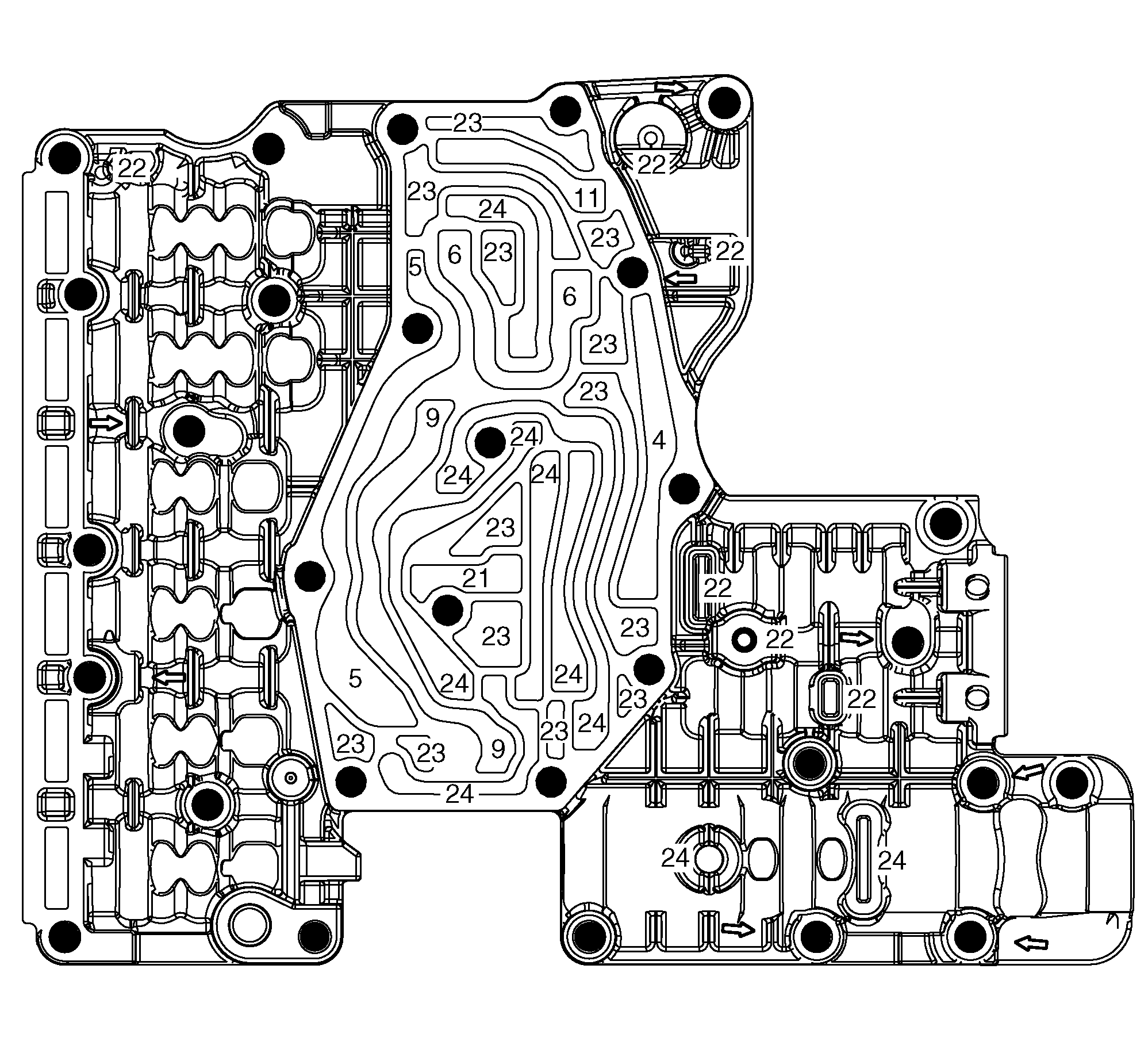

Fig 1: Control Valve Solenoid Body Assembly - Fluid Pan Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
4	Decrease
5	Converter Feed
6	TCC Release
9	Lube
11	Line Pressure Signal
21	Exhaust Backfill
22	Exhaust
23	Void
24	Not Applicable - Model Dependent
