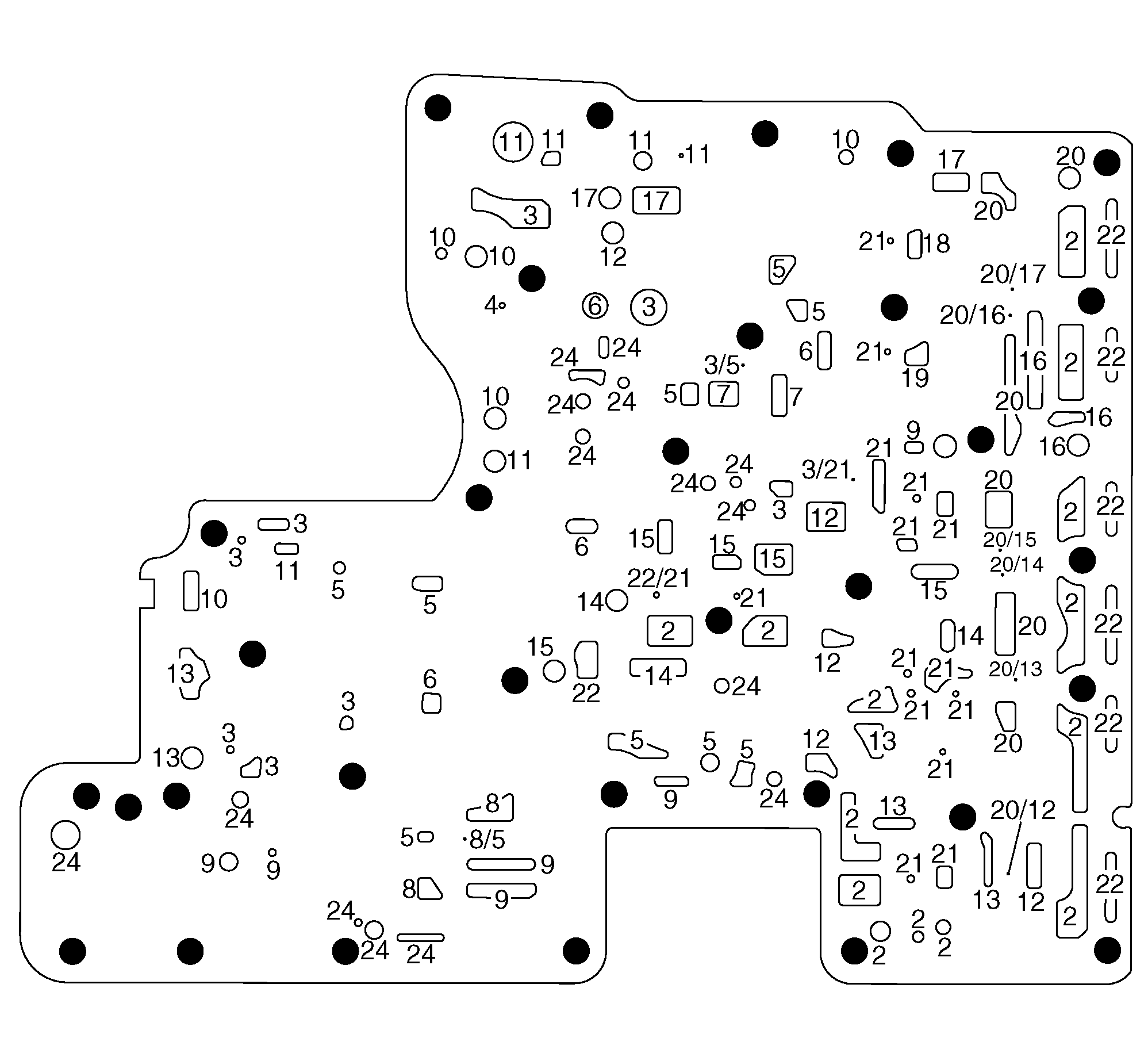

Control Valve Body Spacer Plate - Control Valve Upper Body Assembly Side
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 2 | Line |
| 3 | Secondary Line |
| 4 | Decrease |
| 5 | Converter Feed |
| 6 | TCC Release |
| 7 | TCC Apply |
| 8 | Cooler Feed |
| 9 | Lube |
| 10 | TCC Signal |
| 11 | Line Pressure Signal |
| 12 | 1-2-3-4-5-6-Reverse Clutch |
| 13 | 4-5-6-7-8-9-10-Reverse Clutch |
| 14 | 2-3-4-5-7-9-10 Clutch |
| 15 | 1-2-8-9-10-Reverse Clutch |
| 16 | 1-3-5-6-7-8-9 Clutch |
| 17 | 1-2-3-4-6-7-8-10-Reverse Clutch |
| 18 | 1-2-3-4-6-7-8-10-Reverse Clutch Feedback |
| 19 | 1-3-5-6-7-8-9 Clutch Feedback |
| 20 | Clutch Exhaust |
| 21 | Exhaust Backfill |
| 22 | Exhaust |
| 24 | Not Applicable - Model Dependent |
