Case Assembly - Stator Shaft Support Side

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

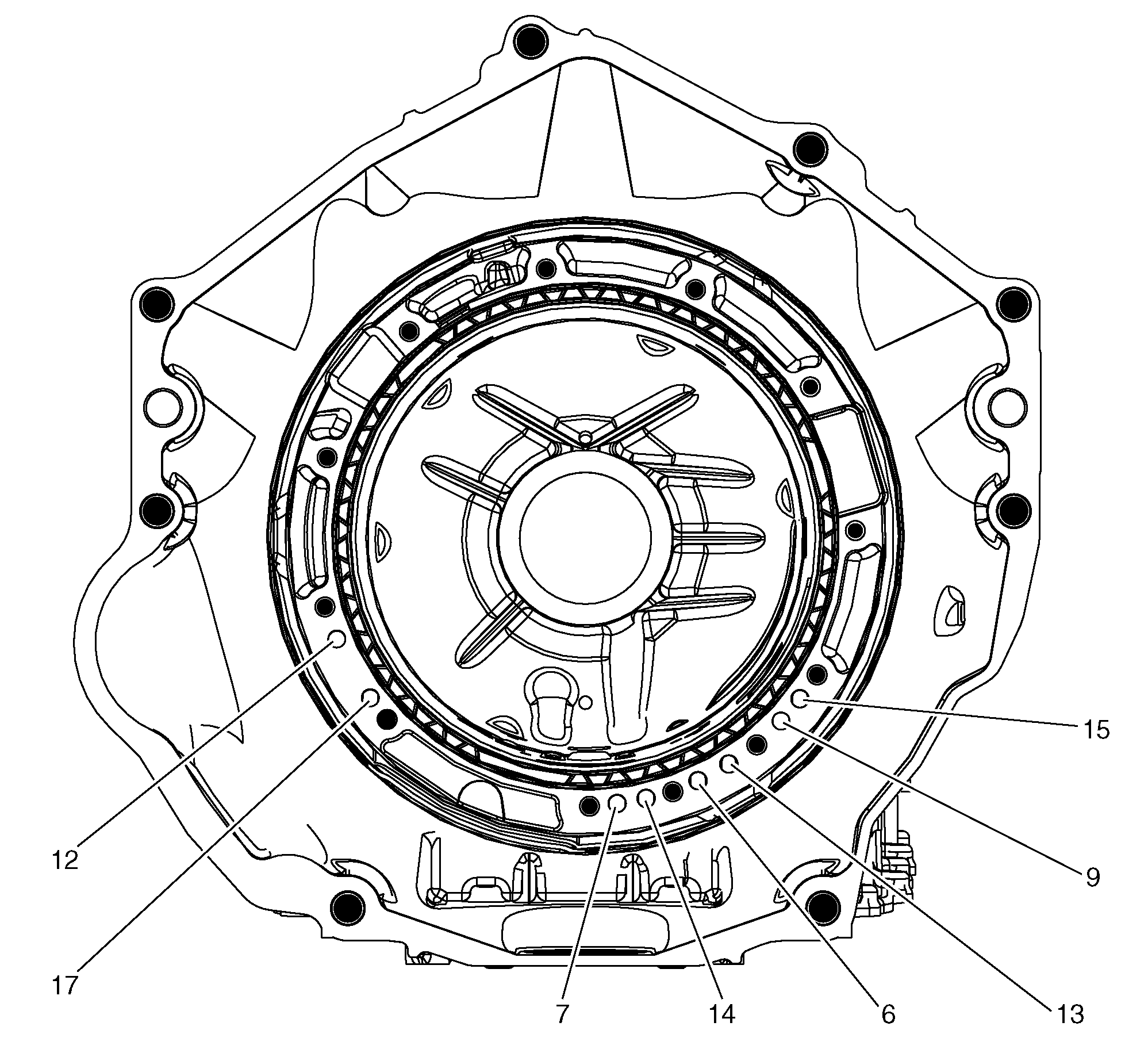

Fig 1: Case Assembly - Stator Shaft Support Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
6	TCC Release
7	TCC Apply
9	Lube
11	Line Pressure Signal
12	1-2-3-4-5-6-Reverse Clutch
13	4-5-6-7-8-9-10-Reverse Clutch
14	2-3-4-5-7-9-10 Clutch
15	1-2-8-9-10-Reverse Clutch
17	1-2-3-4-6-7-8-10-Reverse Clutch
