Case Assembly - Case Extension Side

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

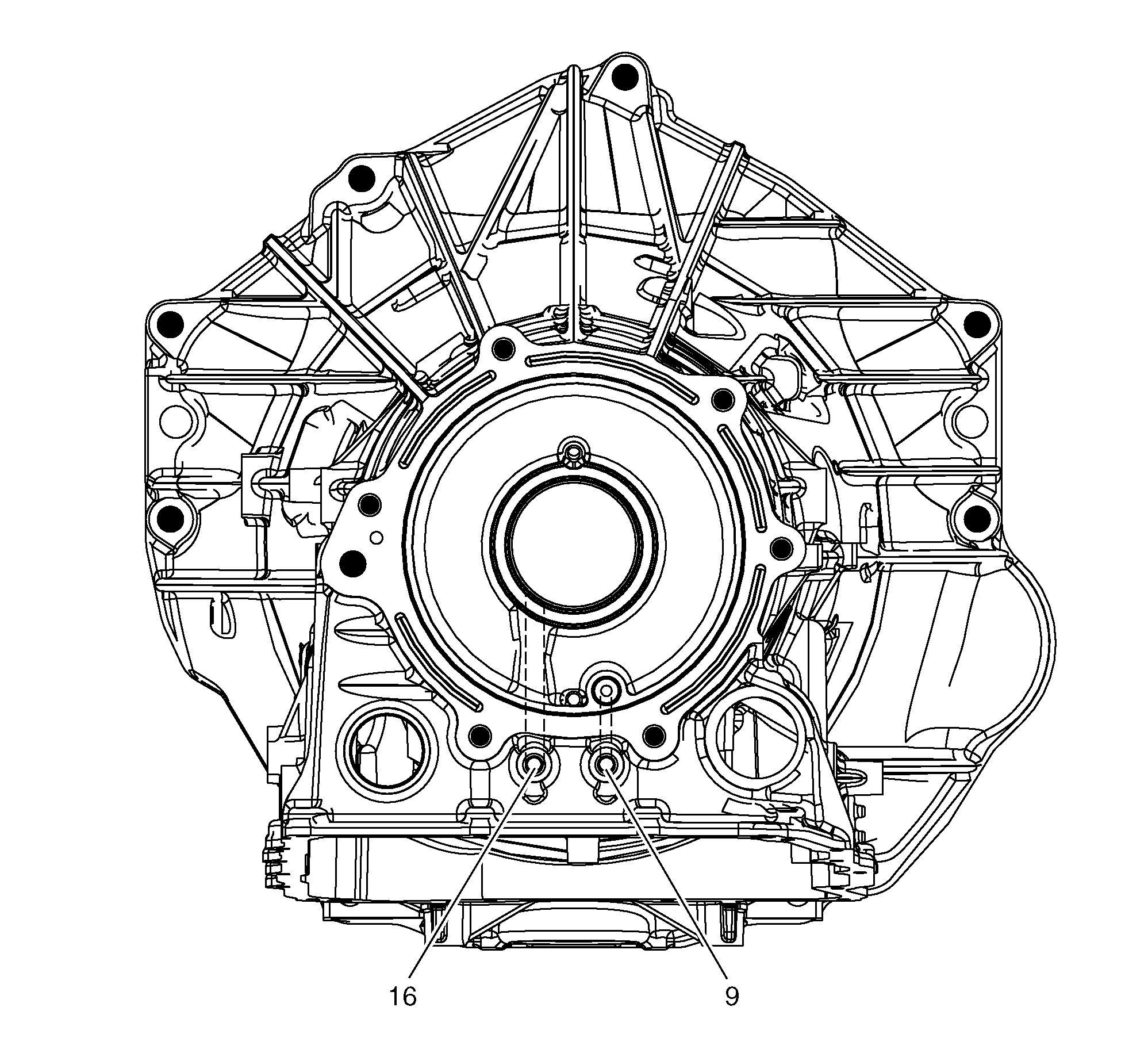

Fig 1: Case Assembly - Case Extension Side
GM4486424Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
9 Lube
16 1-3-5-6-7-8-9 Clutch
