Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

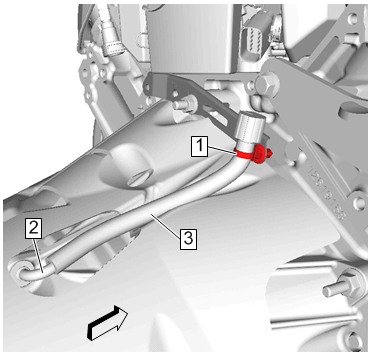

    Fig 1: Transmission Vent Hose Assembly, Retainers And Clip Bracket
    GM4751500Courtesy of GENERAL MOTORS COMPANY
  1. Connect the transmission vent hose assembly (3) to the transmission hose adapter (2).
  2. Connect the transmission vent hose assembly retainers (1) to the transmission vent hose clip bracket.
  3. Lower the vehicle. Lifting and Jacking the Vehicle
