Removal Procedure
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (Single Battery)
- Raise and suitably support the vehicle. Lifting and Jacking the Vehicle
- Support the transmission with a transmission jack.
- Remove the transmission support crossmember. Transmission Support Crossmember Replacement (4 WD)
- Remove the transmission mount. Transmission Mount Replacement (Four Wheel Drive)
- Remove the catalytic converter. Three-Way Catalytic Converter Replacement
- Remove the torque converter access plug (1).
- Remove the left flywheel inspection cover bolt (1) and cover (2).
- Remove the starter motor. Starter Replacement (L83, L86)
- Remove the right flywheel inspection cover bolt (1) and cover (2).
- Remove the flywheel to torque converter bolts (1).
- Disconnect the vent tube hoses and the electrical connections from the transfer case.
- Remove the vent tube bracket (3) from the transmission. Transmission Vent Hose Clip Bracket Replacement
- Remove the transfer case. Transfer Case Assembly Replacement

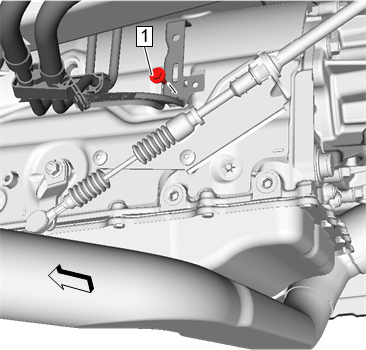

- Remove the bolt (1) that secures the fuel line bracket to the left side of the transmission.
- Remove the range selector cable retaining clip from the transmission range selector cable.
- Remove the range selector cable lever nut (1). Automatic Transmission Range Selector Lever Cable Lever Replacement
- Remove the shift cable and range selector cable lever (2) from the transmission as an assembly.
- Disconnect the transmission electrical connector from the transmission.
- Remove the wire harness from the transmission.
- Disconnect the transmission oil cooler lines (2) from the transmission. Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L83 MYC)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L86 M5U)
- Plug the transmission oil cooler line connectors in the transmission case.
- Lower the transmission to gain access to the top and sides of the transmission.
- Remove the fuel feed line bracket retaining nut (1).
- Remove the 6 upper bolts (1) securing the transmission to the engine.
- Remove the 2 lower bolts (1) securing the transmission to the engine.
- Pull the transmission straight back.
- Install the J 21366 converter holding strap onto the transmission bell housing to retain the torque converter.
- Remove the transmission from the vehicle.
- Flush and flow test the transmission oil cooler and lines. Transmission Fluid Cooler Flow Test and Flushing (10L80)
NOTE:
Do Not remove the cable end from the range selector cable lever, if removed, the cable will break and will have to be replaced.
