Torque Converter Replacement

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

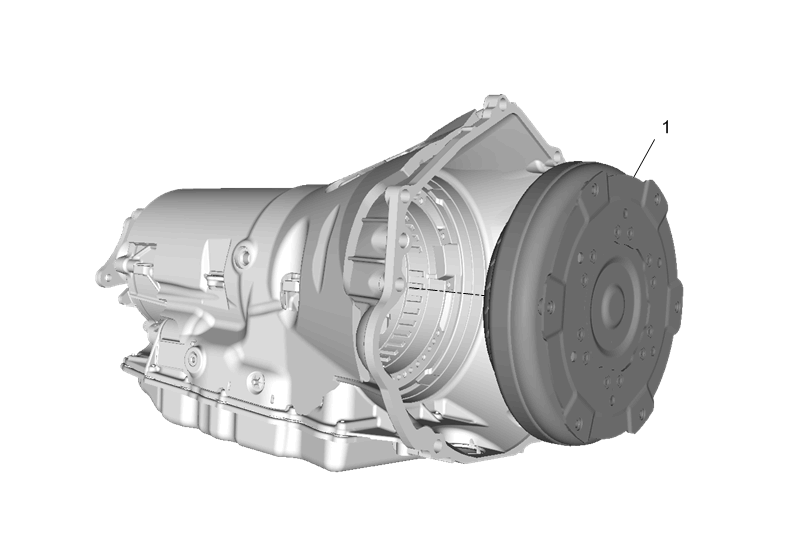

Fig 1: Torque Converter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Transmission Replacement (Four Wheel Drive) Transmission Replacement (Rear Wheel Drive)
1	Torque Converter Assembly WARNING: The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage. Procedure Place a drain pan under the front of the transmission. Use care not to damage the torque converter seal during the installation procedure. Spin the torque converter to engage the turbine shaft splines in the torque converter hub, the stator shaft splines in the stator race and to engage the drive flats on the converter pump hub with the oil pump drive gear. NOTE: Lubricate the converter pump hub OD and the torque converter seal with clean transmission fluid.

Callout

Component Name

Preliminary Procedure
Transmission Replacement (Four Wheel Drive) Transmission Replacement (Rear Wheel Drive)

Torque Converter Assembly

WARNING:

The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.

Procedure

Place a drain pan under the front of the transmission.
Use care not to damage the torque converter seal during the installation procedure.
Spin the torque converter to engage the turbine shaft splines in the torque converter hub, the stator shaft splines in the stator race and to engage the drive flats on the converter pump hub with the oil pump drive gear.

NOTE:

Lubricate the converter pump hub OD and the torque converter seal with clean transmission fluid.
