Automatic Transmission Range Selector Lever Cable Bracket Replacement

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

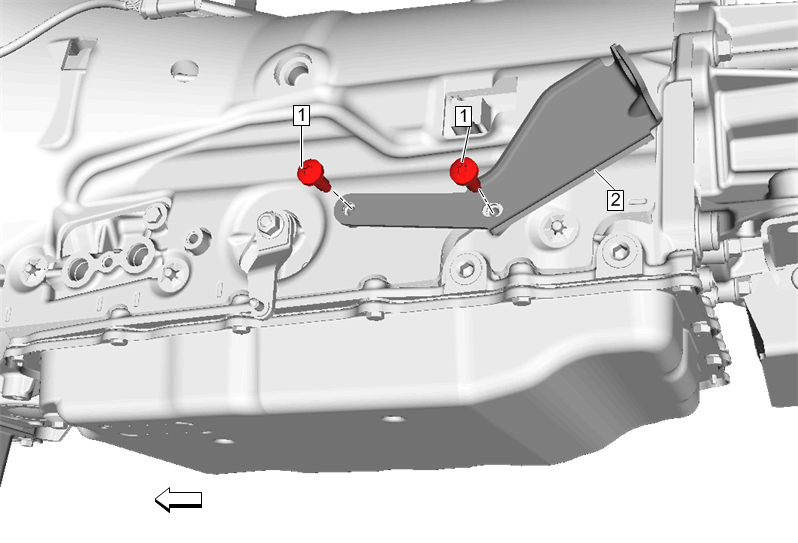

Fig 1: Automatic Transmission Range Selector Lever Cable Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Apply the park brake. Shift the transmission into neutral. Lifting and Jacking the Vehicle . Disconnect automatic transmission range selector cable from the transmission range selector cable bracket. Automatic Transmission Range Selector Lever Cable Replacement .
1	Transmission Range Selector Cable Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Range Selector Cable Bracket

Callout

Component Name

Preliminary Procedures

Apply the park brake.
Shift the transmission into neutral.
Lifting and Jacking the Vehicle .
Disconnect automatic transmission range selector cable from the transmission range selector cable bracket. Automatic Transmission Range Selector Lever Cable Replacement .

Transmission Range Selector Cable Bracket Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Transmission Range Selector Cable Bracket
