Removal Procedure

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Range Selector Lever Retaining Nut And Range Selector Cable
    GM4754173Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do Not remove the cable end from the range selector cable lever. If removed the cable will break and will have to be replaced.

  1. Remove the automatic transmission range selector cable lever nut (1) from the transmission. Automatic Transmission Range Selector Lever Cable Lever Replacement
  2. Remove the shift cable and range selector cable lever (2) and cable as an assembly from the transmission. Automatic Transmission Range Selector Lever Cable Replacement
  3. Remove the control valve body. Control Valve Body Replacement

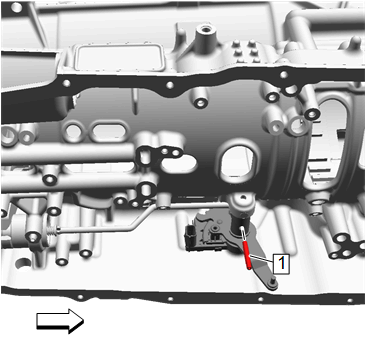

    4. Fig 2: Manual Shift Shaft Pin
    GM4976161Courtesy of GENERAL MOTORS COMPANY
  4. Remove and DISCARD the manual shift shaft pin (1).
    5. Fig 3: Manual Shift Shaft
    GM4540965Courtesy of GENERAL MOTORS COMPANY
  5. Remove the manual shift shaft (1).

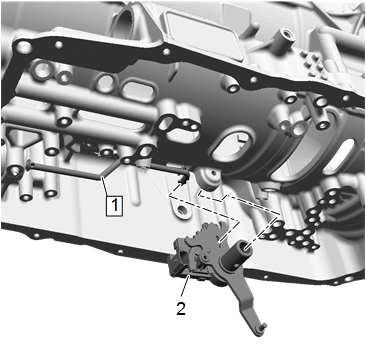

    6. Fig 4: Park Pawl Actuator Rod
    GM4976175Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect the park pawl actuator rod (1) from the automatic transmission manual shift shaft position switch (2).
  7. Remove the automatic transmission manual shift shaft position switch (2) from the transmission.
