Installation Procedure
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

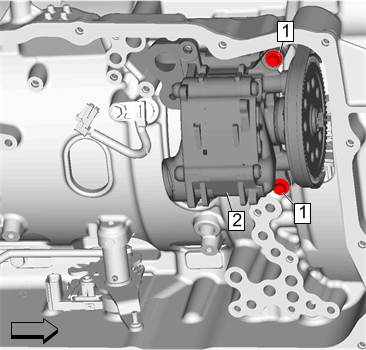

- Install the automatic transmission fluid pump (2).
- Install the bolts (1) and tighten to 11 N.m (97 lb in).
- Install the control valve body. Control Valve Body Replacement
- Fill the transmission. Transmission Fluid Fill Procedure
NOTE:
Ensure the seal is in the pump.
CAUTION:
Refer to Fastener Caution .
