Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the thread of the automatic transmission case plug (1) with a wire bristle brush.
  2. Once the correct fluid level is achieved, apply sealant to the top outer 3 to 4 threads of the case plug near the plug head. Adhesives, Fluids, Lubricants, and Sealers

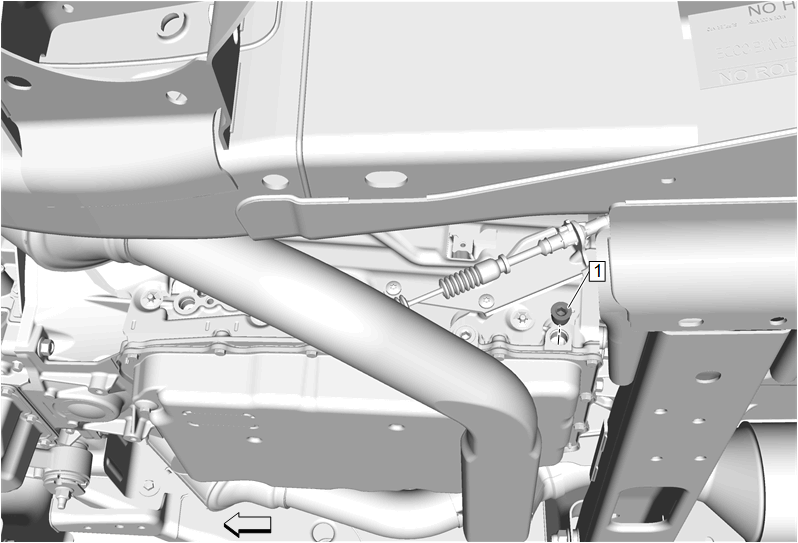

    3. Fig 1: Transmission Case Plug
    GM5080095Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  3. Install the transmission case plug (1) and tighten to 22 N.m (16 lb ft).
  4. Check the transmission fluid level and fill if necessary. Transmission Fluid Level and Condition Check .
  5. Lower the vehicle.
