Speed and Internal Mode Inputs

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

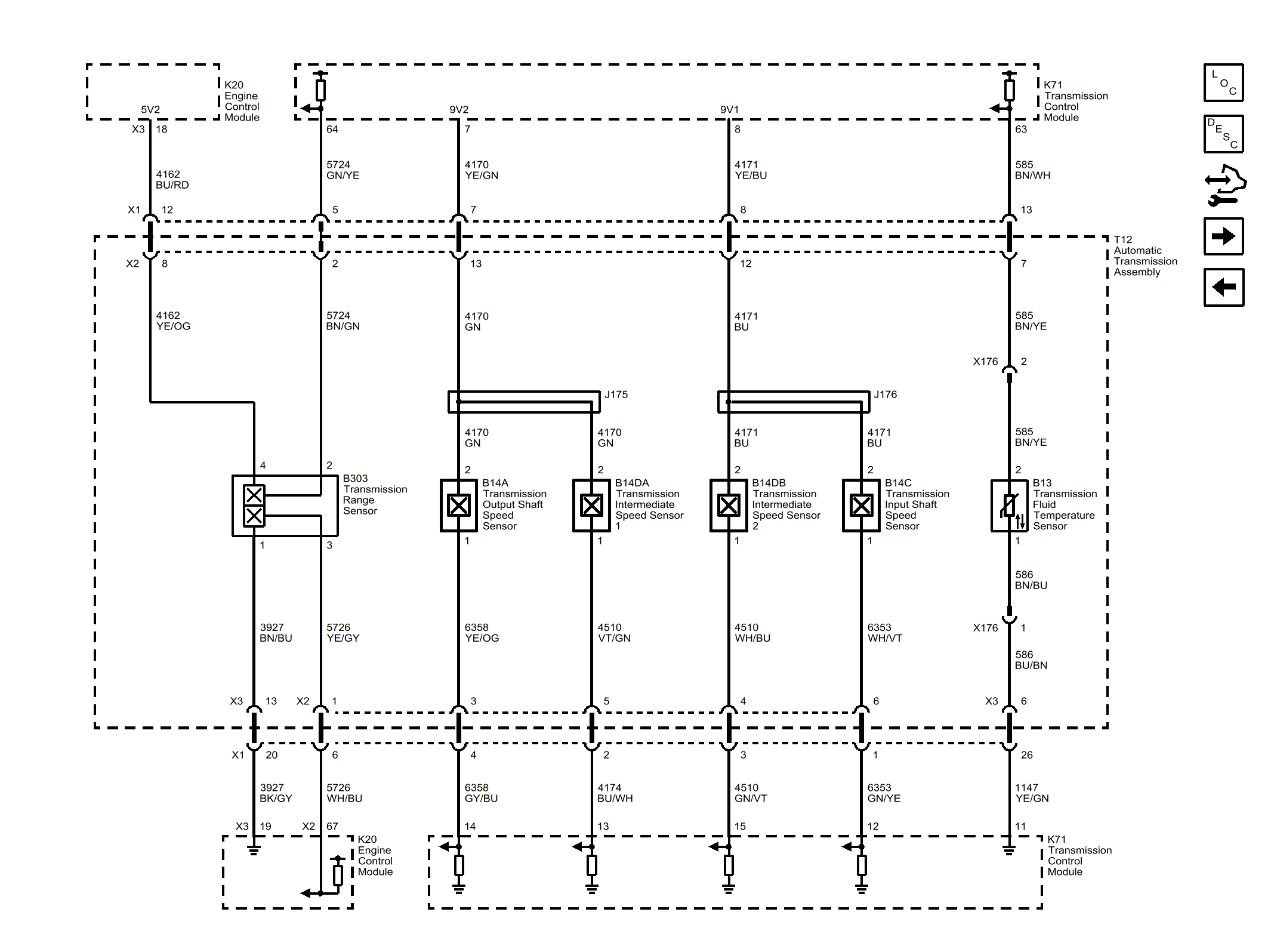

Fig 1: Speed and Internal Mode Inputs
GM4771075Courtesy of GENERAL MOTORS COMPANY
