Transmission Control Solenoids
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
Transmission Control Solenoids

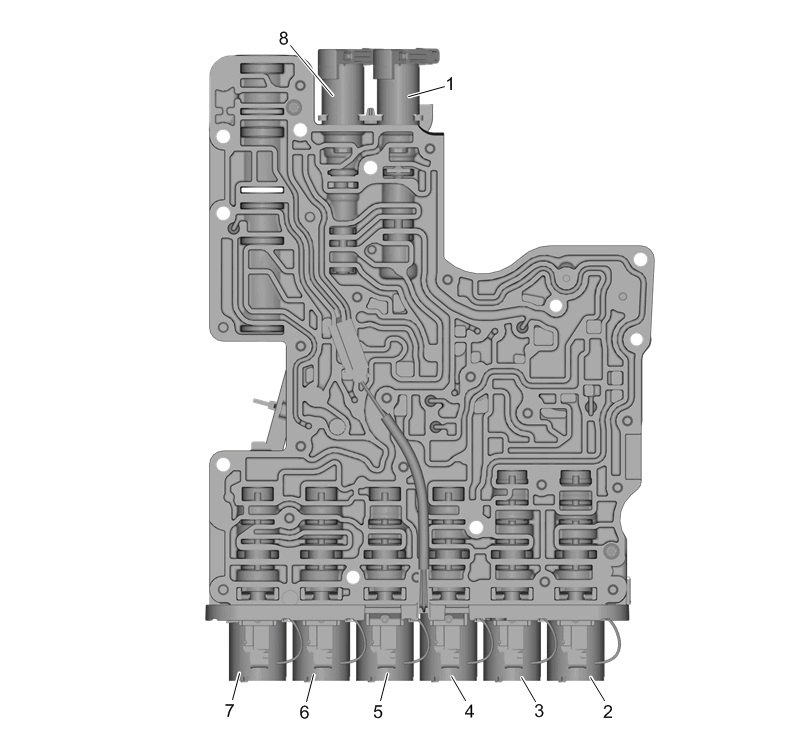

| Callout Number | Solenoid Name | Solenoid Type | Controlled Element | Resistance Value at 20°C (68°F) |
|---|---|---|---|---|
| 1 | Transmission Control Solenoid Valve 7 | Variable Force, Normally High | Line Pressure | 5.0 - 5.4Ω |
| 2 | Transmission Control Solenoid Valve 4 | Variable Force, Pintle Type | 1-2-3-4-6-7-8-10-R Clutch | 5.0 - 5.4Ω |
| 3 | Transmission Control Solenoid Valve 5 | Variable Force, Pintle Type | 1-3-5-6-7-8-9 Clutch | 5.0 - 5.4Ω |
| 4 | Transmission Control Solenoid Valve 2 | Variable Force, Pintle Type | 1-2-8-9-10-R Clutch | 5.0 - 5.4Ω |
| 5 | Transmission Control Solenoid Valve 3 | Variable Force, Pintle Type | 2-3-4-5-7-9-10 Clutch | 5.0 - 5.4Ω |
| 6 | Transmission Control Solenoid Valve 6 | Variable Force, Pintle Type | 4-5-6-7-8-9-10-R Clutch | 5.0 - 5.4Ω |
| 7 | Transmission Control Solenoid Valve 1 | Variable Force, Pintle Type | 1-2-3-4-5-6-R Clutch | 5.0 - 5.4Ω |
| 8 | Transmission Control Solenoid Valve 8 | Variable Force, Normally Low | Torque Converter Clutch (TCC) | 5.0 - 5.4Ω |
