Control (with Body and Valve) Valve Assembly

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

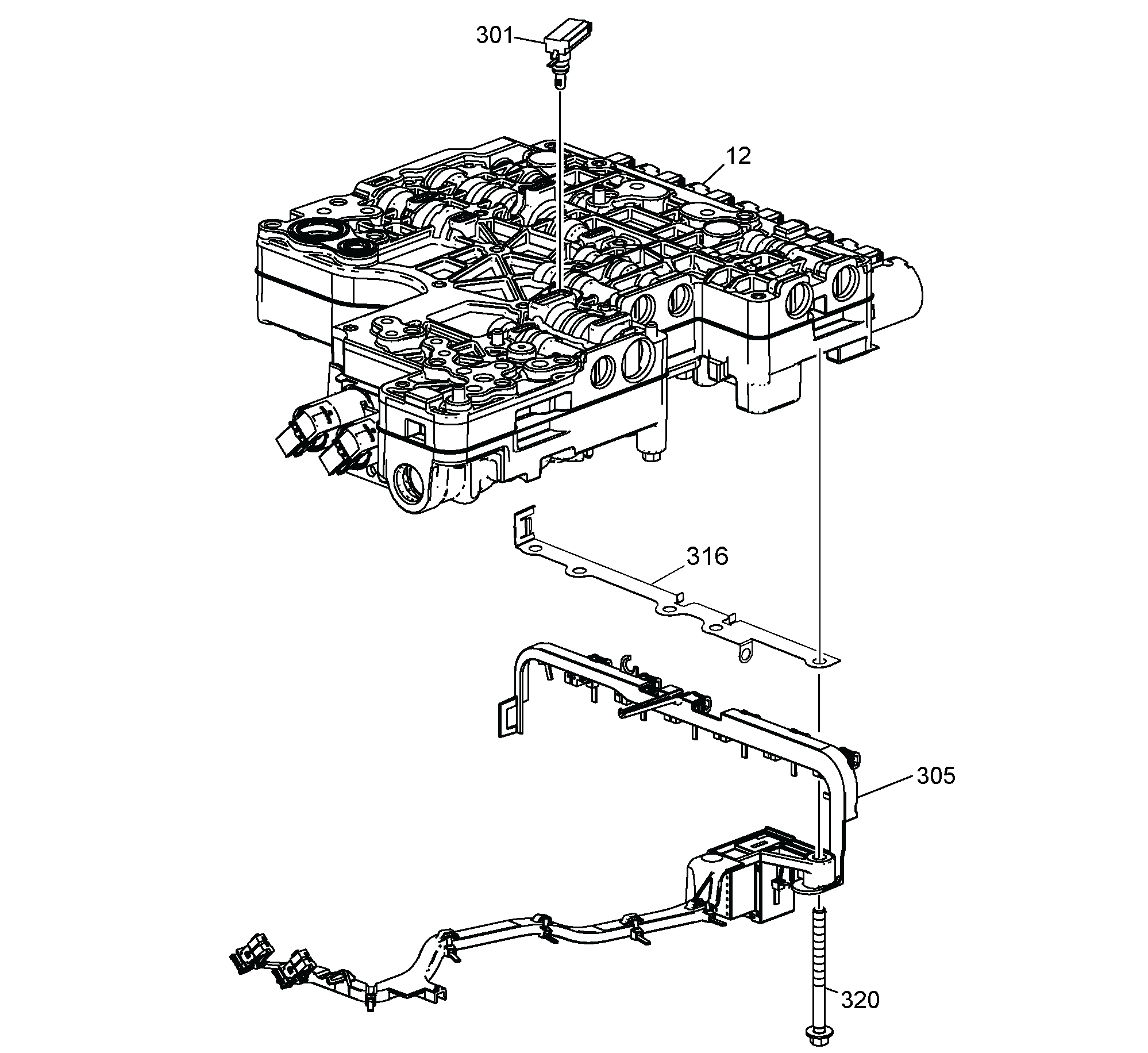

Fig 1: Control (with Body and Valve) Valve Assembly Components
GM4363533Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
12 Control Valve Upper Body Assembly
301 Automatic Transmission Fluid Temperature Sensor
305 Automatic Transmission Wiring Harness
316 Control Valve Body Fluid Passage Cover
320 Automatic Transmission Park Interlock Solenoid Bolt
