Park System Components
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

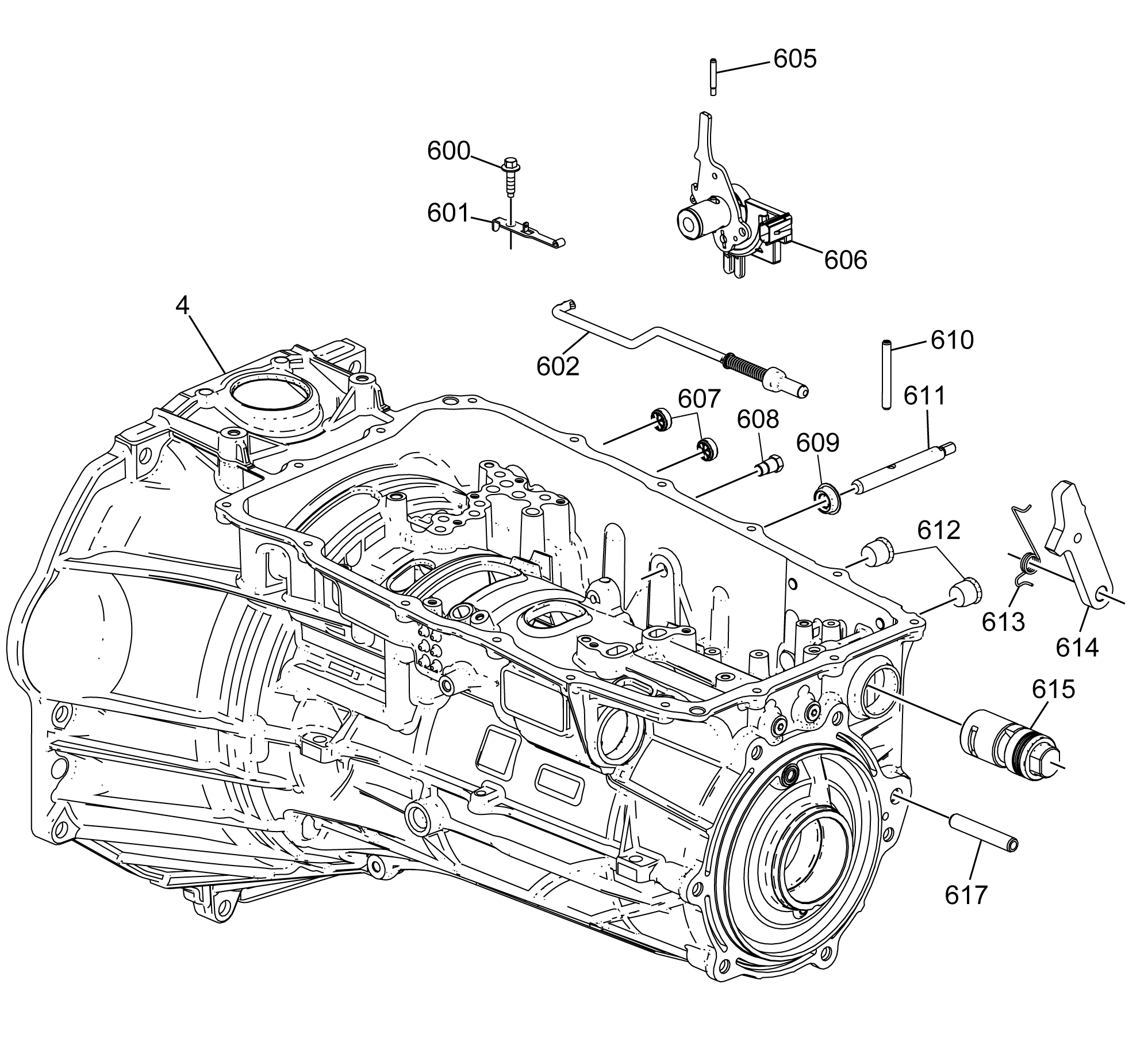

| Callout | Component Name |
|---|---|
| 4 | Automatic Transmission Case |
| 600 | Manual Shift Detent Spring Bolt |
| 601 | Park Release Lever Support |
| 602 | Park Pawl Actuator |
| 605 | Manual Shift Shaft Pin |
| 606 | Automatic Transmission Manual Shift Shaft Position Switch |
| 607 | Transmission Fluid Cooler Pipe Fitting Seal |
| 608 | SPECIAL PLUG - AUTO HEXAGON |
| 609 | Manual Shift Shaft Seal |
| 610 | Park Pawl Actuator Guide Pin |
| 611 | Manual Shift Shaft |
| 612 | Automatic Transmission Case Plug |
| 613 | Park Pawl Spring |
| 614 | Park Pawl |
| 615 | Park Pawl Actuator Guide |
| 617 | Park Pawl Shaft |
