Vehicle Dynamic Sensor Replacement (With DCK)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

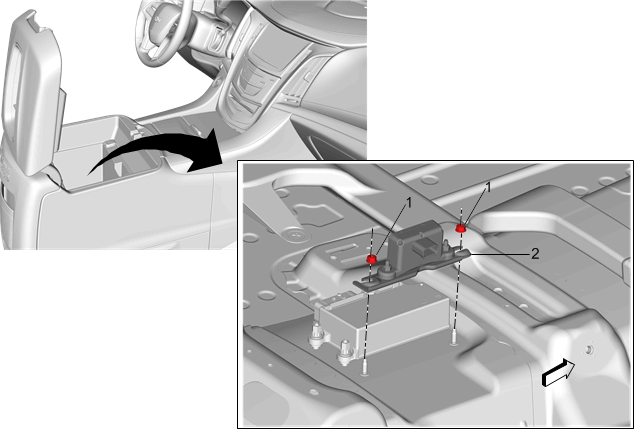

Fig 1: Vehicle Dynamic Sensor (With DCK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn the ignition OFF. Remove the front floor console center compartment. Refer to Front Floor Console Center Compartment Replacement (Insert)Front Floor Console Center Compartment Replacement (Chevrolet/GMC)Front Floor Console Center Compartment Replacement (Cadillac) .
1	Vehicle Dynamic Sensor Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Dynamic Sensor Procedure Disconnect the electrical connector. Perform the Vehicle Yaw Sensor Learn .

Callout

Component Name

Preliminary Procedures

Turn the ignition OFF.
Remove the front floor console center compartment. Refer to Front Floor Console Center Compartment Replacement (Insert)Front Floor Console Center Compartment Replacement (Chevrolet/GMC)Front Floor Console Center Compartment Replacement (Cadillac) .

Vehicle Dynamic Sensor Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Vehicle Dynamic Sensor

Procedure

Disconnect the electrical connector.
Perform the Vehicle Yaw Sensor Learn .
