Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the BPMV bracket (1).

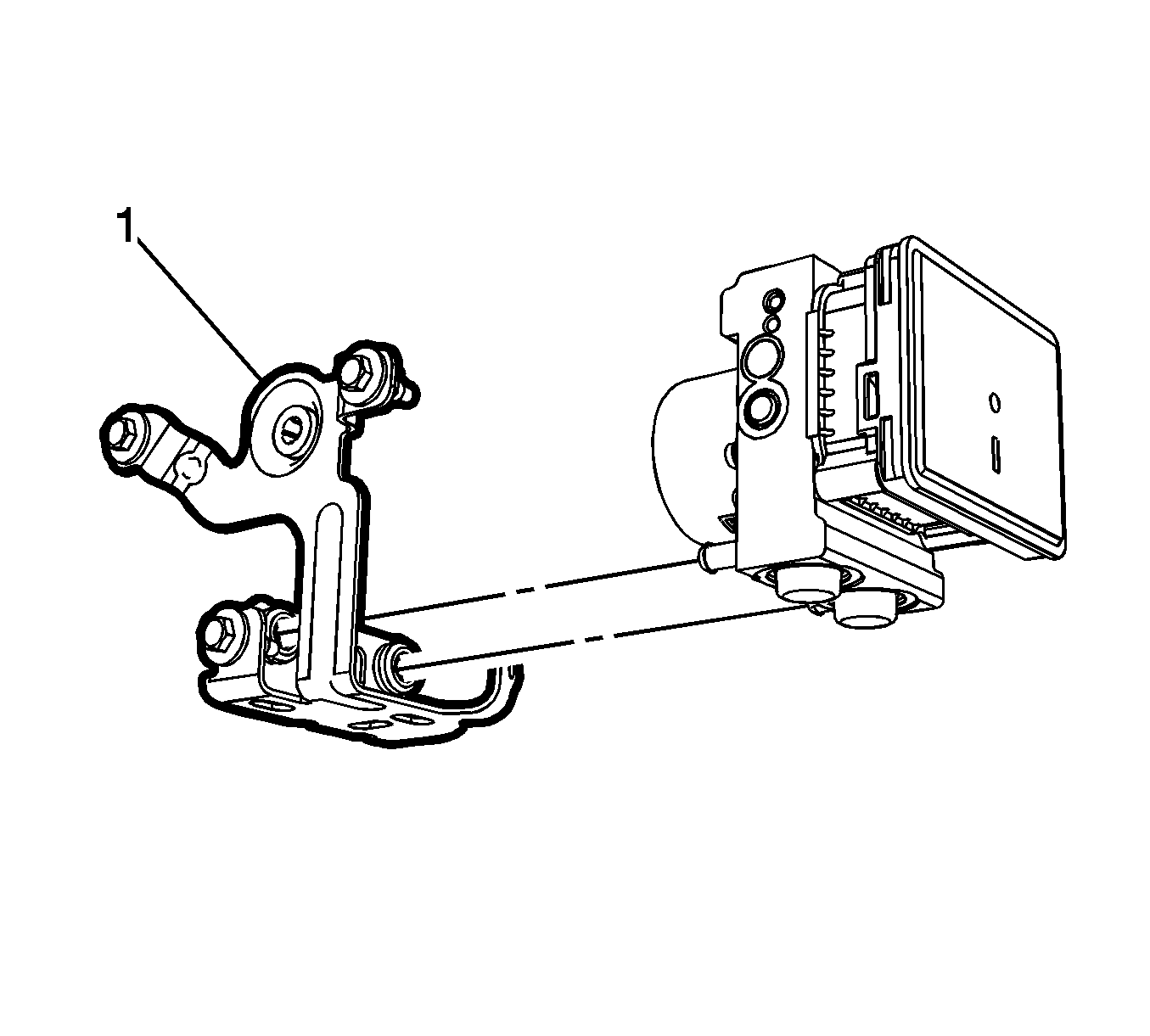

    Fig 1: BPMV Bracket
    GM3255841Courtesy of GENERAL MOTORS COMPANY
  2. Install the BPMV bolt (1) and tighten to 10 N.m (89 lb in).

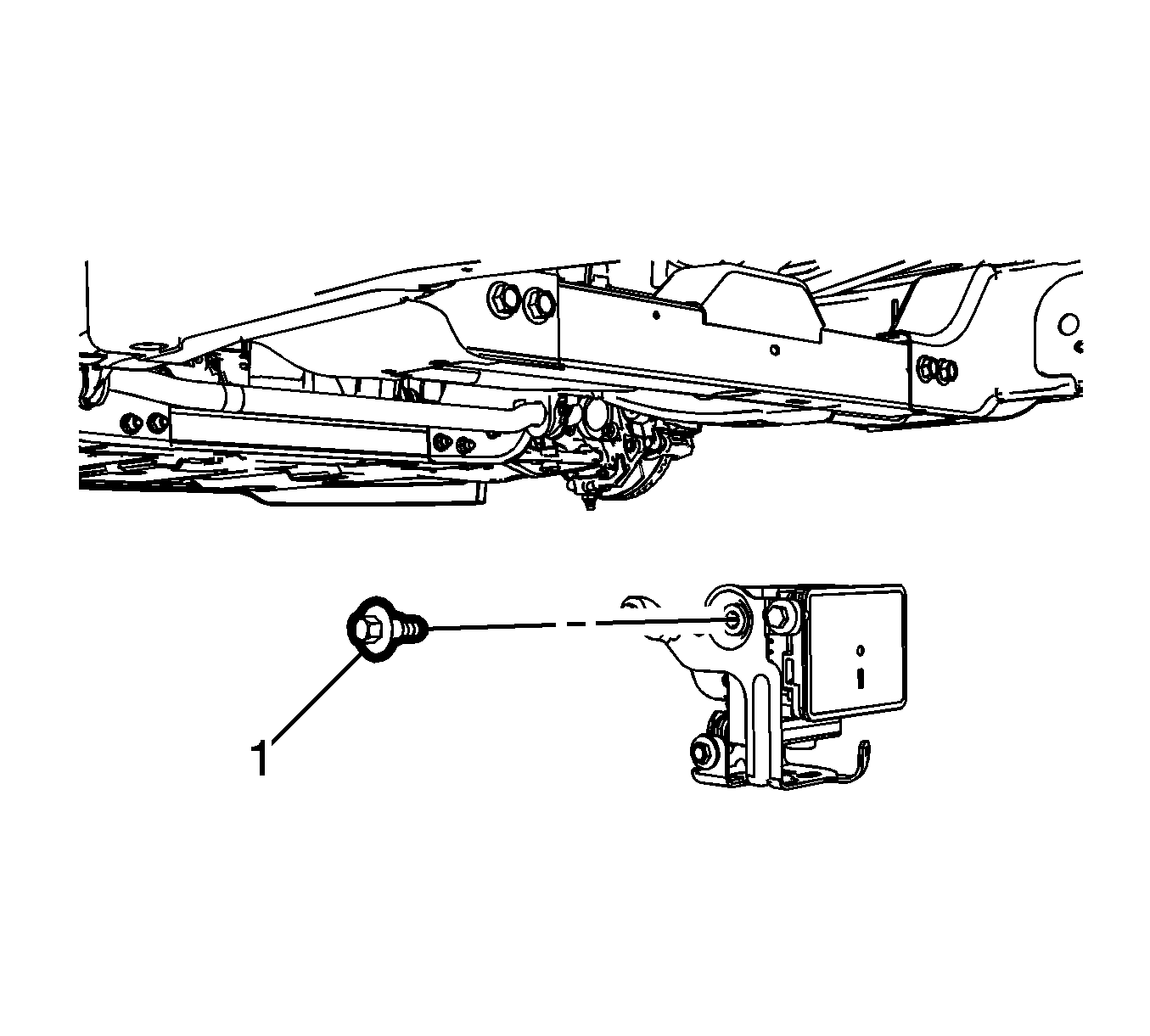

    Fig 2: BPMV Bolt
    GM3255837Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Install the BPMV assembly. Refer to Brake Pressure Modulator Valve Replacement .
