3rd Row Seat Cushion Cover And Pad Replacement (40%)

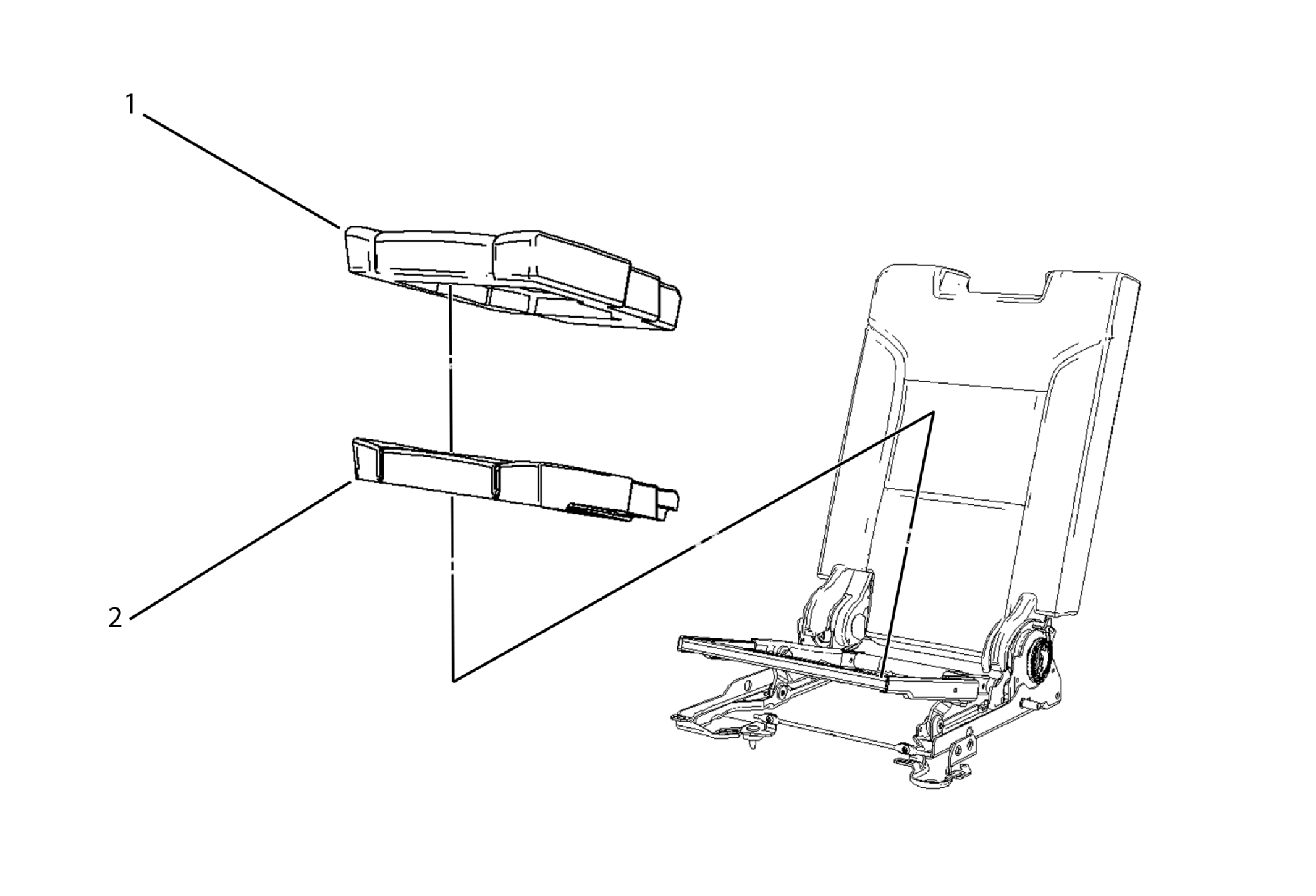

Fig 1: 3rd Row Seat Cushion Cover and Pad (40%)

GM3648344

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures
Separate the 3rd row seat. Refer to Rear Seat Separation (3rd Row Power with AS8) Rear Seat Separation (3rd Row Manual with ARN) Rear Seat Separation .

1

3rd Row 40% Seat Cushion Cover

Procedure

Disconnect the seat cushion cover j-channel from the seat cushion frame.
Disengage the hook and loop fastener strips retaining the cover to the pad and separate the cover from the pad.

2

3rd Row 40% Seat Cushion Pad
