Front Seat Center Armrest Replacement

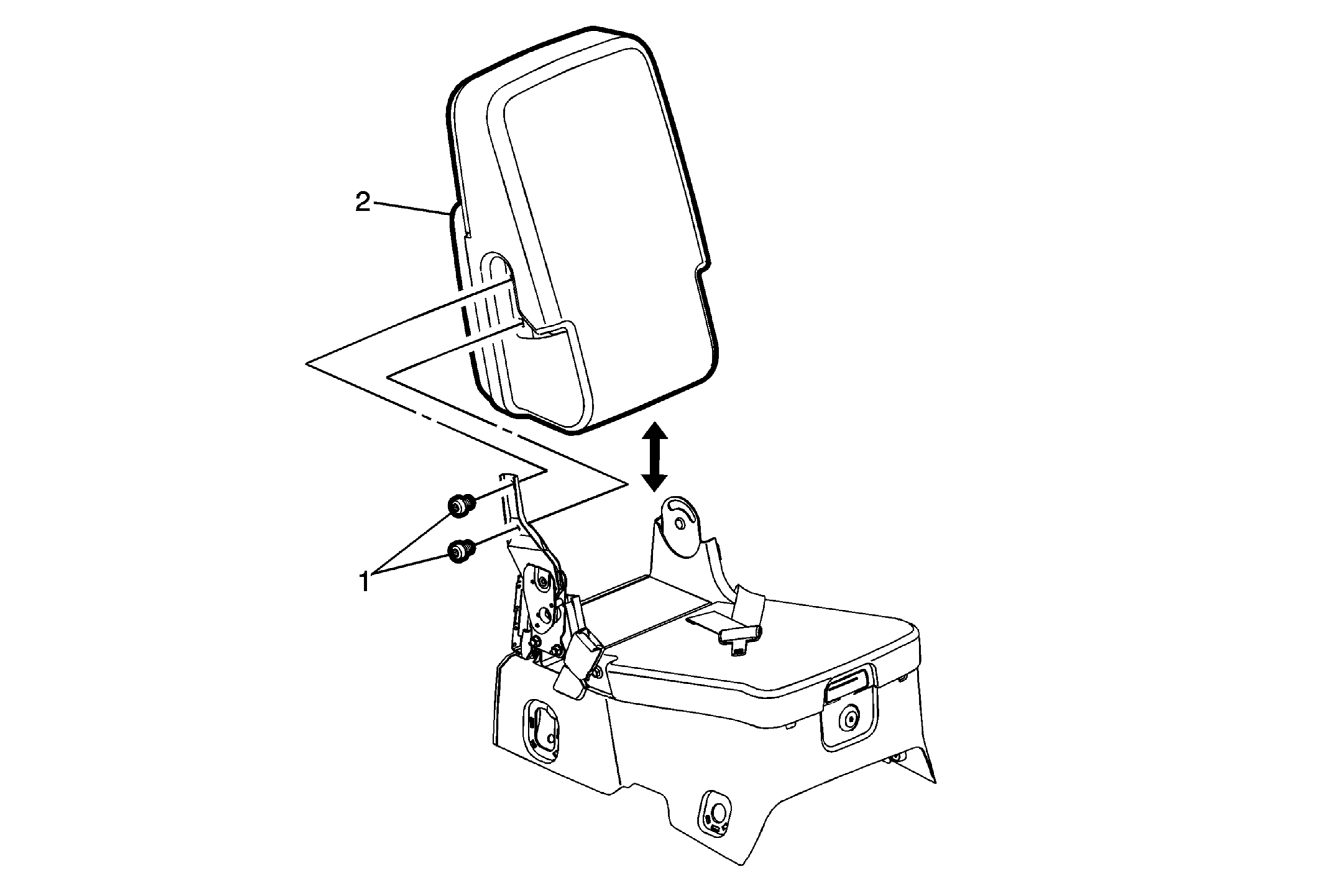

Fig 1: Front Seat Center Armrest

GM3258750

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the front center seat back cushion latch upper cover. Refer to Front Center Seat Back Cushion Latch Upper Cover Replacement .
Remove the front seat cushion rear frame center cover. Refer to Front Seat Cushion Rear Frame Center Cover Replacement .

1

Front Seat Center Armrest screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Front Seat Center Armrest
