Front Seat Adjuster Switch Bracket Replacement

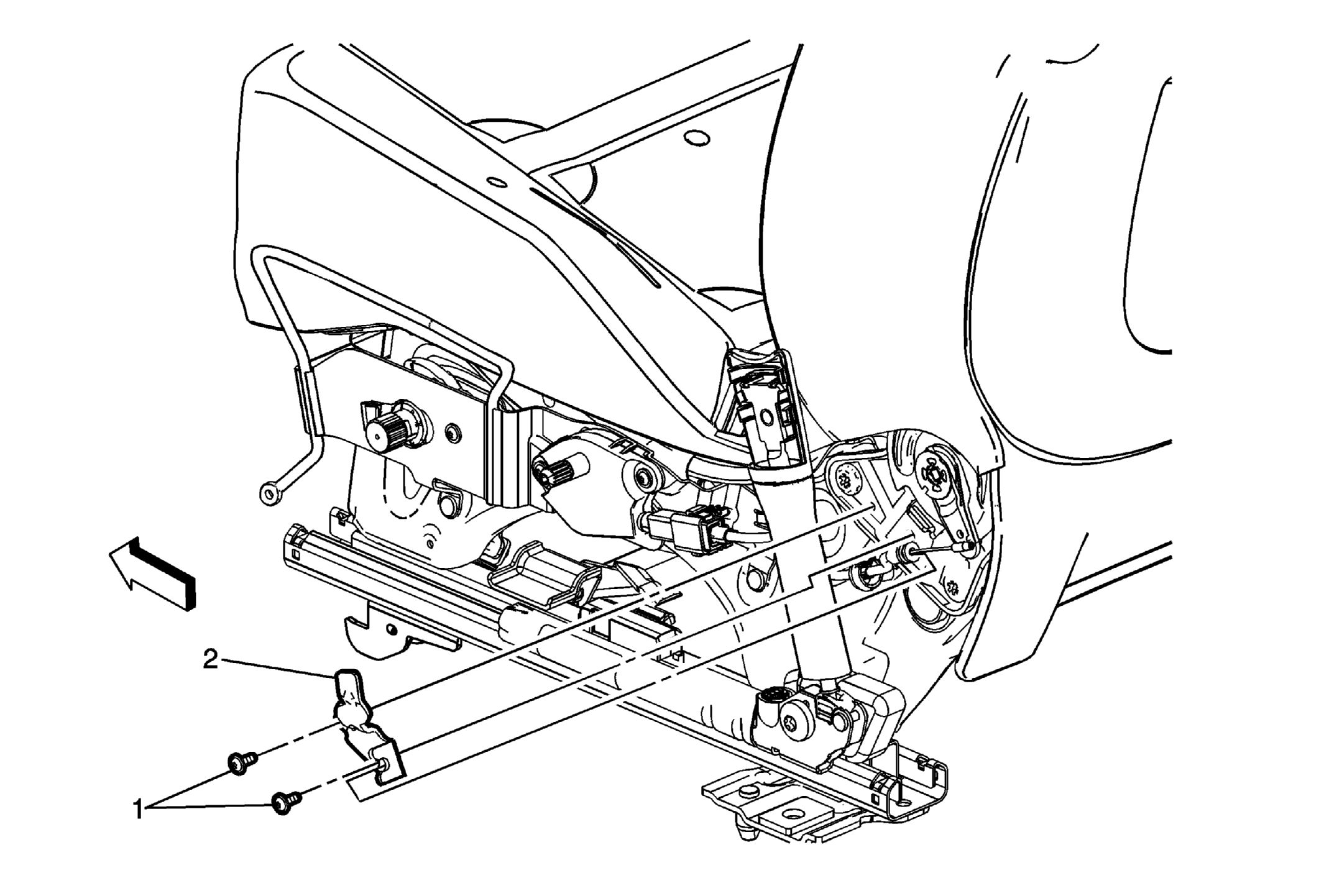

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement (8-Way Power) Front Seat Cushion Outer Finish Cover Replacement (2-Way Manual) Front Seat Cushion Outer Finish Cover Replacement (22-Way Power) . |
|
| 1 | Front Seat Adjuster Switch Bracket Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Seat Adjuster Switch Bracket Procedure Detach the recliner cable from the adjuster switch bracket. |
