Driver Or Passenger Seat Lumbar Support Actuator Knob Replacement (8 Way Power)

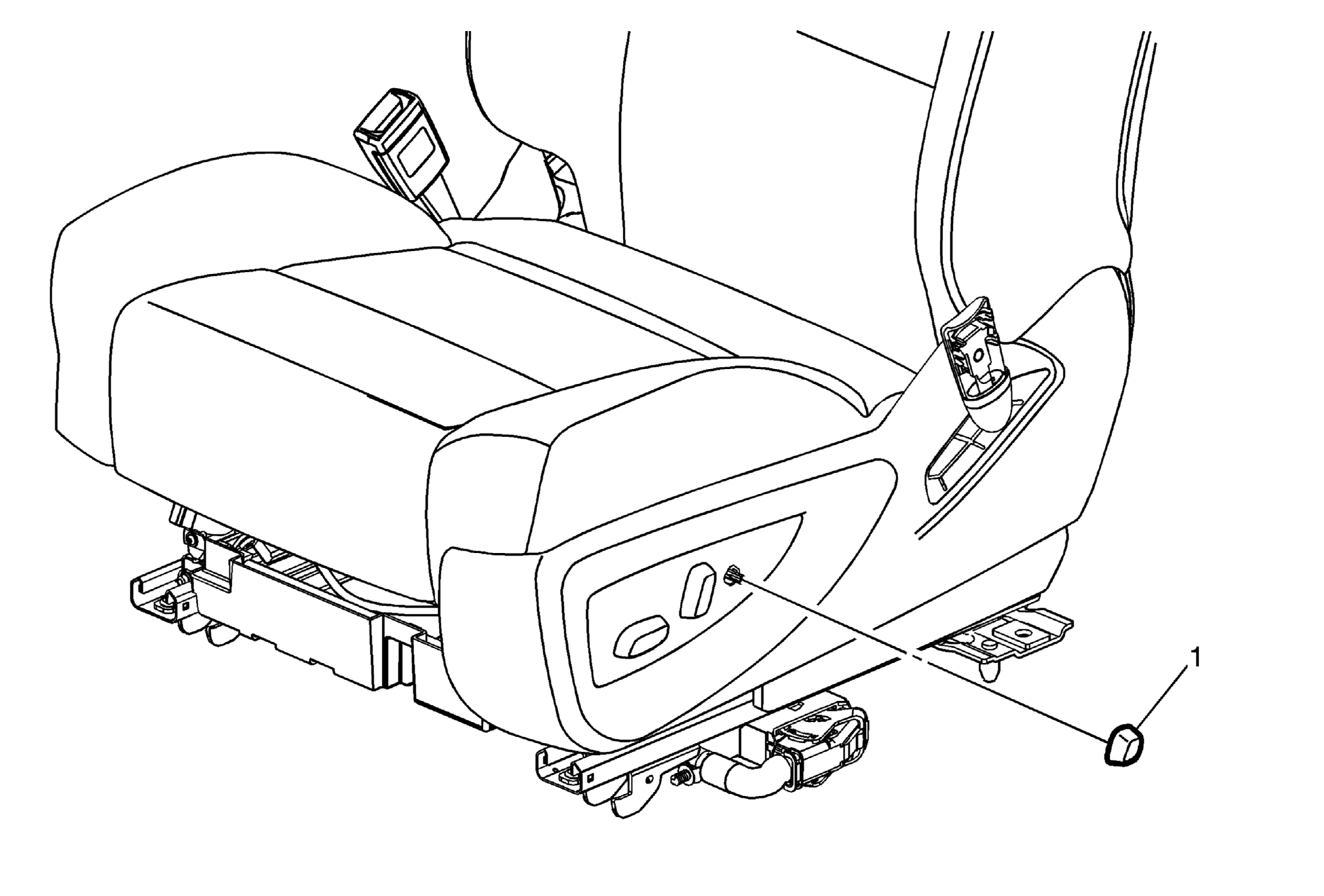

Fig 1: Driver or Passenger Seat Lumbar Support Actuator Knob (8 Way Power)
GM3257010Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Driver or Passenger Seat Lumbar Support Actuator Knob
Procedure
Use a flat-bladed tool to release the actuator knob from the outer finish panel.
