Driver Or Passenger Seat Cushion Frame Replacement (Except Passenger Side With 6-way Power)

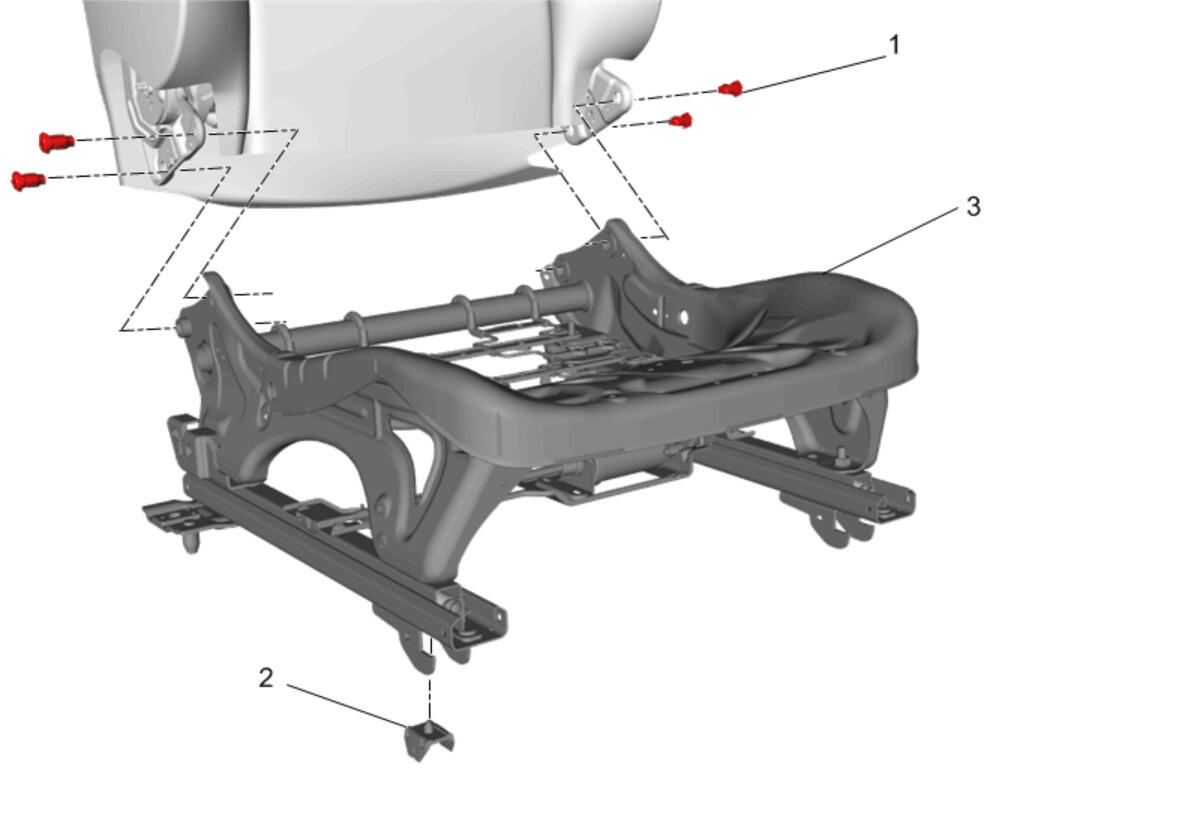

Fig 1: Driver or Passenger Seat Cushion Frame (Except Passenger Side with 6-way Power)
GM4532270Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Seat Cushion Cover and Pad Replacement
1 Driver or Passenger Seat Back Frame Fastener [4x]
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the front seat recliner control bracket.
  2. Clean the thread locking compound from the bolts and reapply new thread locker. The bolts are held in by Blue 242® medium strength loctite.

Tighten
50 N.m (37 lb ft)
2 Front Seat Adjuster Front Spacer
NOTE:

Installed on the outboard side only.
3 Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
